规格 Specifications

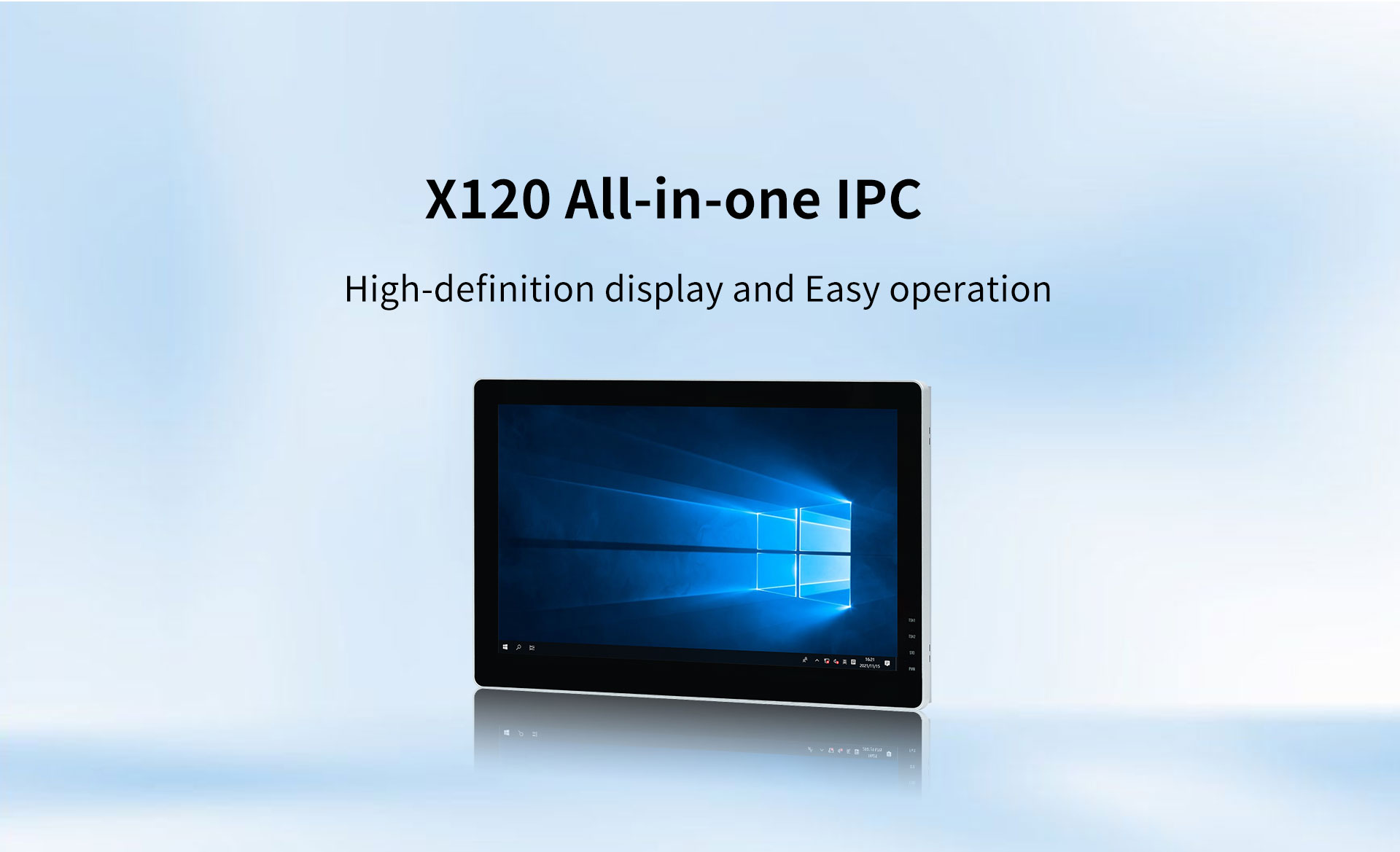

| Specs | Item | X120 Series |
Processor System | CPU | Intel® Apollo Lake Celeron/Pentium CPU（N3350/J3355/J3455/J4205/N4200） |
BIOS | AMI UEFI BIOS at 64Mb | |
| TDP | 10W MAX | |
Memory | Sockets | LPDDR4 |
Capacity | Max. 8GB | |
| Graphics | Controller | Intel Gen9 Graphic Engine |
| Graphic Features | DirectX 12.0, OpenGL 4.3, OpenCL 2.0,HW Decode: H.264, MPEG2, VC-1, WMV9, H.265/HEVC, VP8, JPEG/MJPEG | |

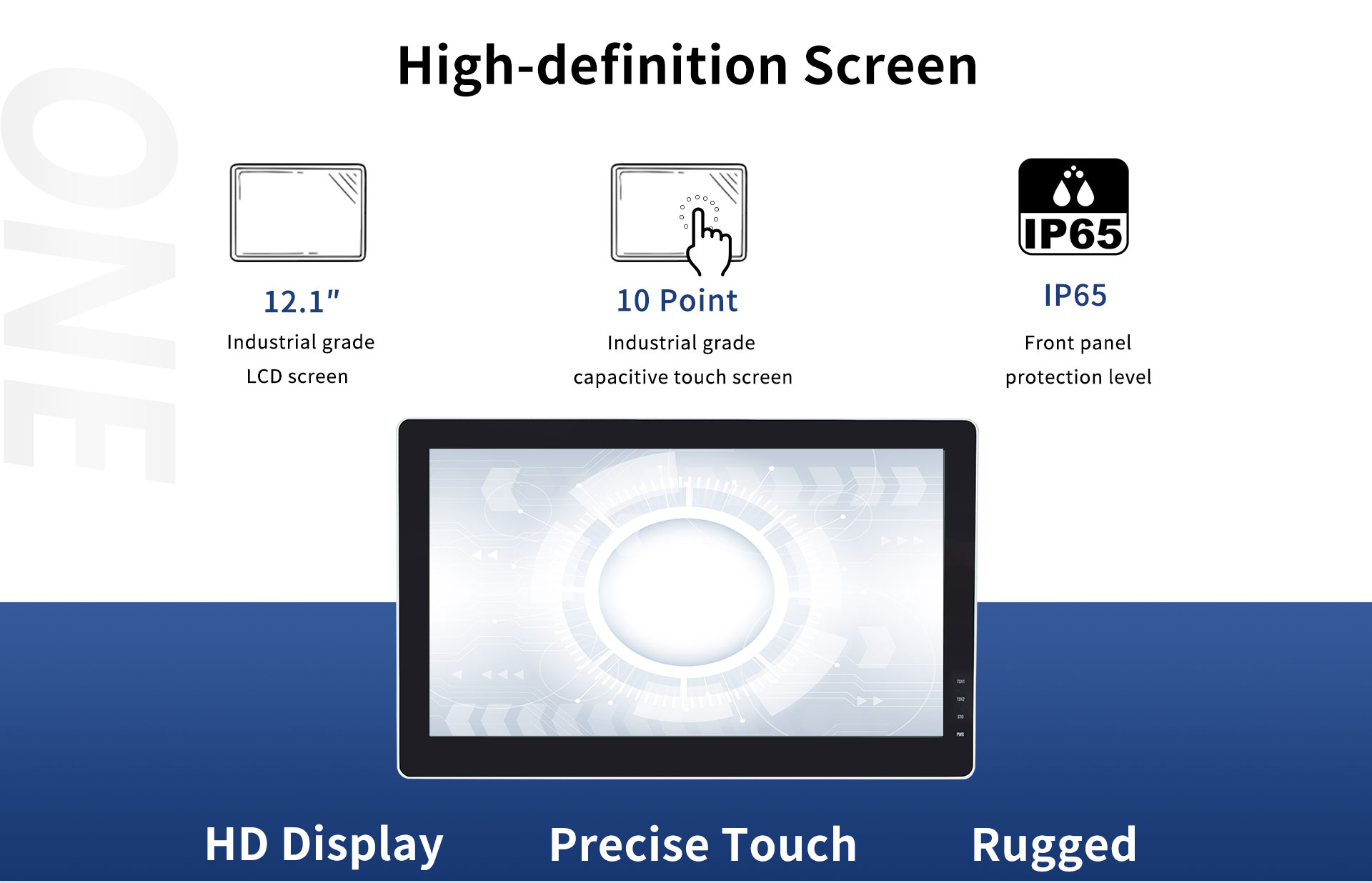

Display | Screen Size | 12.1" TFT LCD |
Resolution | 1280 (H) x 800(V) | |
Screen aspect ratio | 16:9 | |
| Backlight | LED | |
| Backlight Life | 50,000 Hrs | |
| Touch type | 10-points capacitive multi-touch | |

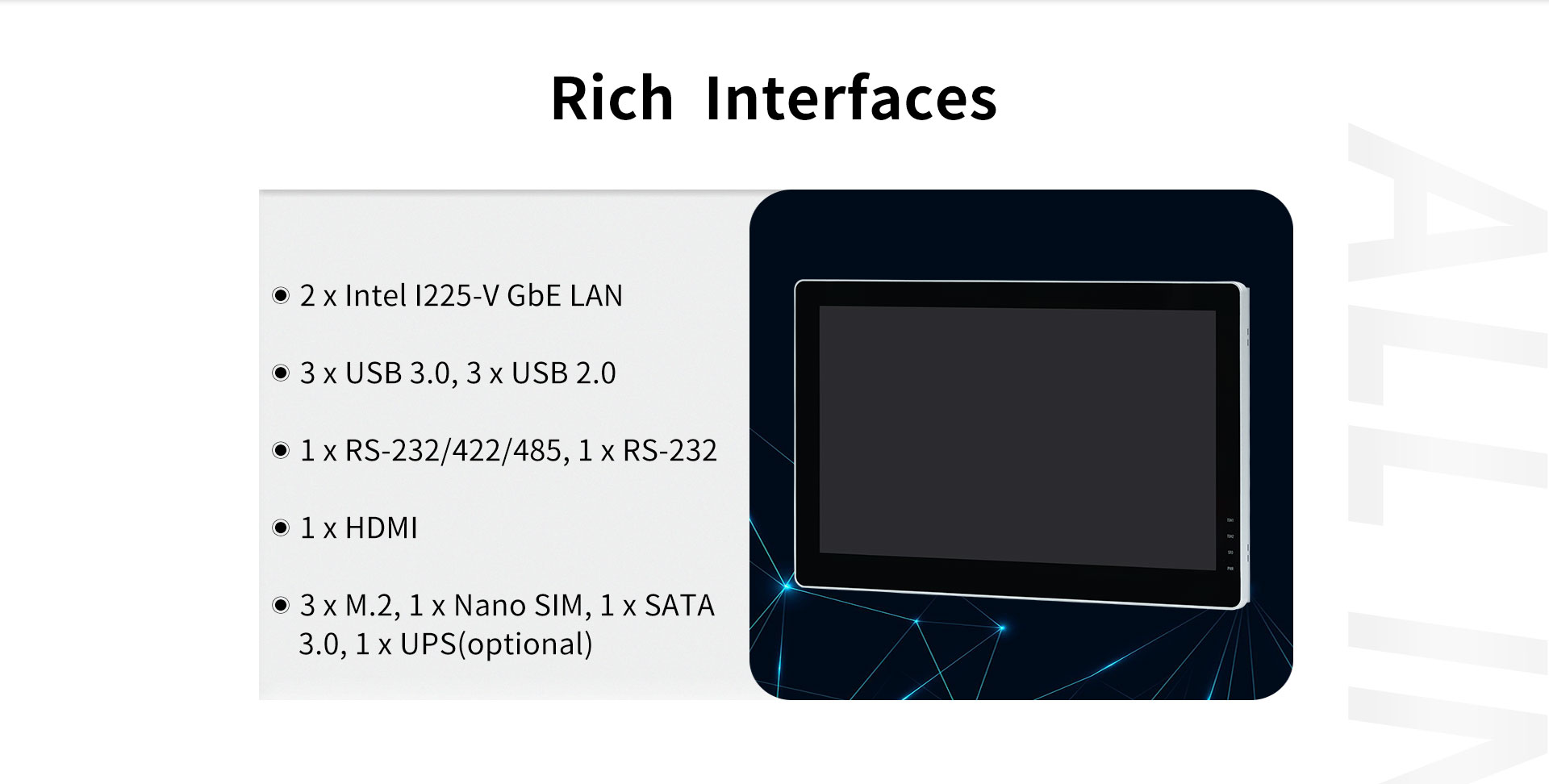

Interfaces | LAN | 2 x Intel i225-V GbE |
USB | 3 x USB3.0 、1 x USB2.0 | |
Serial port | 1 x RS-232/422/485, 1x RS-232 | |
HDMI | 1 | |
| SIM | 1 x Nano SIM | |
| Internal Connectors | USB 2.0 | 2 |
| VGA | 1 | |
| SATA 3.0 | 1 | |
| Serial Port | 4 x (TTL TX/RX/CTS/RTS/GND) | |
| GPIO | 8 | |
| Audio | 1 x HDA | |
| SMBus | 1 | |
| LPC | 1 | |
| CPU FAN | 1x 4-Wire Smart Fan, 12V@2A | |
| Front Panel Control | Power LED, HD LED, Reset, Power Switch | |
| User LED | 4 | |
| UPS | 1(Optional) | |
Expansion | M.2 E-Key | 1 x M.2 E-Key 2242, support WiFi |
M.2 B-Key | 1 x M.2 B-Key 3052, support 4G/5G USB 3.0 | |
| M.2 M-Key | 1 x M.2 B/M-Key 2280, support SATA 3.0 | |
Board Feature | Watchdog Timer | 65536 lever，0-65535 sec |
| TPM | TPM2.0 | |
Power Supply | Supply Voltage | 24V DC ± 5% |
| Power Management | AT/ATX | |
| Max. Consumption | 35W | |
| Test Environment | Intel J4205 4G | |
OS | OS Support | Windows 10 64Bit, Linux |
| Physics characteristic | Mounting | Desktop/Wall Mounting |
Dimensions | 320 x 219 x 50.8 mm (LxWxH) | |
Weight | 2.6 Kg | |
Environment | Operating Temperature | 0°C~60°C, Extend -40°~85°C |
Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) | |
Relative Humidity | 95% @ 40°C ( Non-Condensing ) | |
Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
Front panel protection | IP 65 | |
EMC | CE/FCC Class B |
尺寸图 Demensions
接口图 Interfaces
