New release | Compact Wall mounting Fanless Embedded IPC New favorite for smart manufacturing

Whether it is automation, smart factory, equipment integration in cabinets, or IoT gateways, the internal space is often very limited, and the requirements for usability are particularly high. To this end, Future Robot Technology launched the new members of the E310/V300 series to perfectly solve these problems. This is an ultra-compact BOX PC and supports a wall-mounting fanless design embedded industrial computer, equipped with Intel Atom® N4200 processor, integrated with rich I/O interface, compact structure, whether it is the first installation or post-maintenance, customer can achieve ultra-convenient one-handed operation.

The on-board chip and cable-free design of the whole device have good shock resistance and dust resistance ability, reducing the probability of maintenance, which helps simplify the initial deployment and subsequent management processes.



Features:

ü  Intel Atom® N4200 Quad-core SoC, Turbo Boost Frequency up to 2.5 GHz

ü  Wall mounting design, easy to deploy

ü  Dual HDMI+DP display, 4K HD resolution

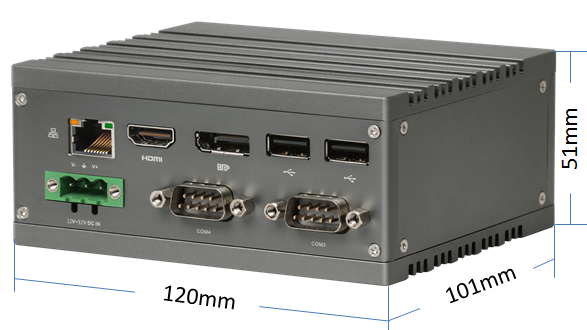

ü  Compact design, dimension 120 x 101 x 50mm（LxWxH）

ü  1 x mPCIe SIM slot, 1 x M.2 2230 for WIFI

ü  12V~32V  wide range DC input

ü  -20~60°C wide operation temperature

ü  Support Windows 10, Linux

Advantages:

Industrial intelligent management and security support

Take the lead in adopting zero-touch technology connection for software and hardware integration, users can wirelessly monitor the real-time running status on site, and realize software and firmware updates. To ensure system security, E310/V300 provides Trusted Platform Module (TPM) 2.0 function on demand, and supports Windows 10 IoT BitLocker.

In addition, the unique system protection function is used for antivirus protection and important data recovery and backup. These IPC products are suitable for different industrial and outdoor environments, and help users simplify equipment management and reduce post-maintenance work in a simple, efficient and safe systematic method

Rugged, compact, wall-mounted fanless design

E310/V300 is based on Intel Atom® N4200 Quad-core SoC, Turbo Boost Frequency up to 2.5 GHz, on-board memory up to 8GB DDR3L 1600MHz. E310/V300 is designed for harsh environment, support wide range operation temperature -20~60°C, air flow 0.7 m/s, which ensure its ideal for outdoor work. 12V-32V DC-in wide range power input is suitable for power fluctuation or unstable environment. E310/V300 support series of functional I/O interface, including 2 x USB3.0, 2 x USB2.0, 3 x LAN and 4 x COM. The compact size of the product is suitable for installation in space-constrained applications that require high I/O flexibility and performance.

Dual 4K displays for immersive display and media performance

E310/V300 support dual 4K ultra HD resolution displays, DP resolution up to 4096 x 2160 @ 60Hz, HDMI resolution up to 3840 x 2160 @ 30Hz. The Intel® HD Graphics 500/505 chipset guarantees low power consumption operation while enhancing media processing capabilities through video encoding and playback functions.

With the E310/V300, manufacturers can view and analyze and manage data and machine automation processes in smart factories more clearly through smart factory panel displays or interactive displays.
