With the rapid development of artificial intelligence (AI) technology, the integration of intelligent AI innovation with traditional industries is deepening. The manufacturing sector is experiencing a transformation from traditional manufacturing to intelligent manufacturing. This shift not only optimizes production processes and enhances efficiency but also promotes standardization and regulation in the industry. However, intelligent manufacturing faces multiple challenges such as massive real-time data processing, high computing power requirements, and reliability. As a core hardware device in intelligent manufacturing, industrial control computers are now required to meet higher demands in terms of computing power, real-time performance, and scalability.

E22x Series IPCs Based on Intel® Alder Lake N Platform

FutureRobot has launched the E22x series of industrial computers based on the Intel® Alder Lake N platform (N97/i3-N305). The Alder Lake N series processors utilize Intel's 7nm process technology, offering excellent performance and powerful computing capabilities. The E22x series features a rich array of I/O configurations, including network ports, serial ports, USB, and DIO interfaces to meet diverse user needs. With a modular design that incorporates wireless capabilities, it offers higher reliability and supports agile development, allowing users to quickly customize according to different application requirements.

E221 Series (Industrial Control Preferred Level for Intel PIPC Project

·   Intel® Alder Lake-N Platform N97/i3-N305 Processor

·   Single-channel DDR5-4800, up to 16GB memory

·   Dual independent displays via DP and HDMI

·   3 LAN (2 x Intel i210 supporting PoE, 1 x Realtek RTL8111H)

·   3 USB 3.0, 1 USB 2.0

·   1 RS-232/422/485, 1 RS-232, 2 RS-232/485

·   Supports 4G/5G and Wi-Fi module expansion

·   DC 9~36V wide voltage design with UPS module support

·   Dimensions: 172 x 125 x 64.5mm; supports wall-mounting, back-mounting, and rail installation

·   Compatible with Windows 10/11 and multiple versions of Linux

E223 Series (Machine Vision Preferred Level for Intel PIPC Project)

·   Intel® Alder Lake-N Platform N97/i3-N305 Processor

·   Single-channel DDR5-4800, up to 16GB memory

·   Dual independent displays via DP and HDMI

·   3 LAN (2 x Intel i210, 1 x Realtek RTL8111H)

·   3 USB 3.0, 1 USB 2.0

·   1 RS-232/422/485, 1 RS-232

·   Features: 8 DI, 8 DO; supports dual light sources, dual triggers, dual encoders

·   Supports 4G/5G and Wi-Fi module expansion

·   DC 9~36V wide voltage design with UPS module support

·   Dimensions: 172 x 125 x 64.5mm; supports wall-mounting, back-mounting, and rail installation

·   Compatible with Windows 10/11 and multiple versions of Linux

FutureRobot’s IPCs Based on Intel® 12th/13th Core Platform

FutureRobot Tech's E510C series of industrial computers based on the Intel® Core platform (12th/13th generation) boasts powerful computing capabilities and excellent real-time performance. With configurations of up to 24 cores and 32 threads based on Intel's high-performance hybrid architecture using a refined process technology, it can support more applications, workloads, and connected devices running simultaneously.

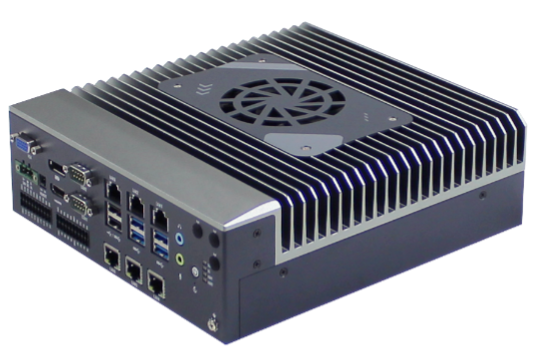

E510C Series  IPCs

·

·   Intel® Core™ i3/i5/i7 Processors (12th/13th Generation)

·   Dual-channel DDR5-4800, up to 96GB memory

·   DP, VGA, and HDMI; supports up to three independent displays

·   Six LAN (5 x Intel i210, 1 x Intel i219)

·   Supports up to six USB 3.0 ports

·   One RS-232/422/485 port; one RS-232 port

·   Features: 16 DI, 16 DO; supports dual light sources

·   Supports expansion for modules like Wi-Fi and cellular networks (4G/5G)

·   DC power supply at 24V with UPS module support

·   Dimensions:220 x226 x75mm; supports wall-mount installation

·   Compatible with Windows10/11 and multiple versions of Linux

Applications of FutureRobot’s IPC in 3D Dispensing

Dispensing is an important process in industrial production. Combining 3D vision with dispensing technology allows for precise application of adhesive on complex surfaces or irregularly shaped workpieces. By utilizing a high-precision 3D vision system, robotic systems can identify the geometric shapes of workpieces and adjust the position and angle of the dispensing nozzle in real time to ensure accuracy.FutureRobot Tech industrial computers offer several advantages in 3D dispensing applications:

• Real-time Computing: Equipped with Intel® processors that provide users with real-time and flexible high-performance computing capabilities; jitter data meets requirements below 20us, allowing for rapid response to input signal changes.

• Flexible Expansion: Supports Ethernet, RS-232/485, USB interfaces as well as expansions for modules like 4G/5G and Wi-Fi for seamless integration with other devices.

• Programmability: DI/DO interfaces are controlled based on FPGA technology allowing users to configure according to their needs.

• High Stability: Features a compact and robust structural design along with advanced thermal solutions that meet wide temperature ranges and voltage designs while ensuring electromagnetic interference resistance for reliable long-term operation in harsh industrial environments.

In the future, FutureRobot Tech will continue to optimize innovative technologies and products to provide customers with more flexible and diverse choices while actively promoting the application of edge AI across various sectors in collaboration with ecosystem partners in this new era of intelligent manufacturing powered by AI.
