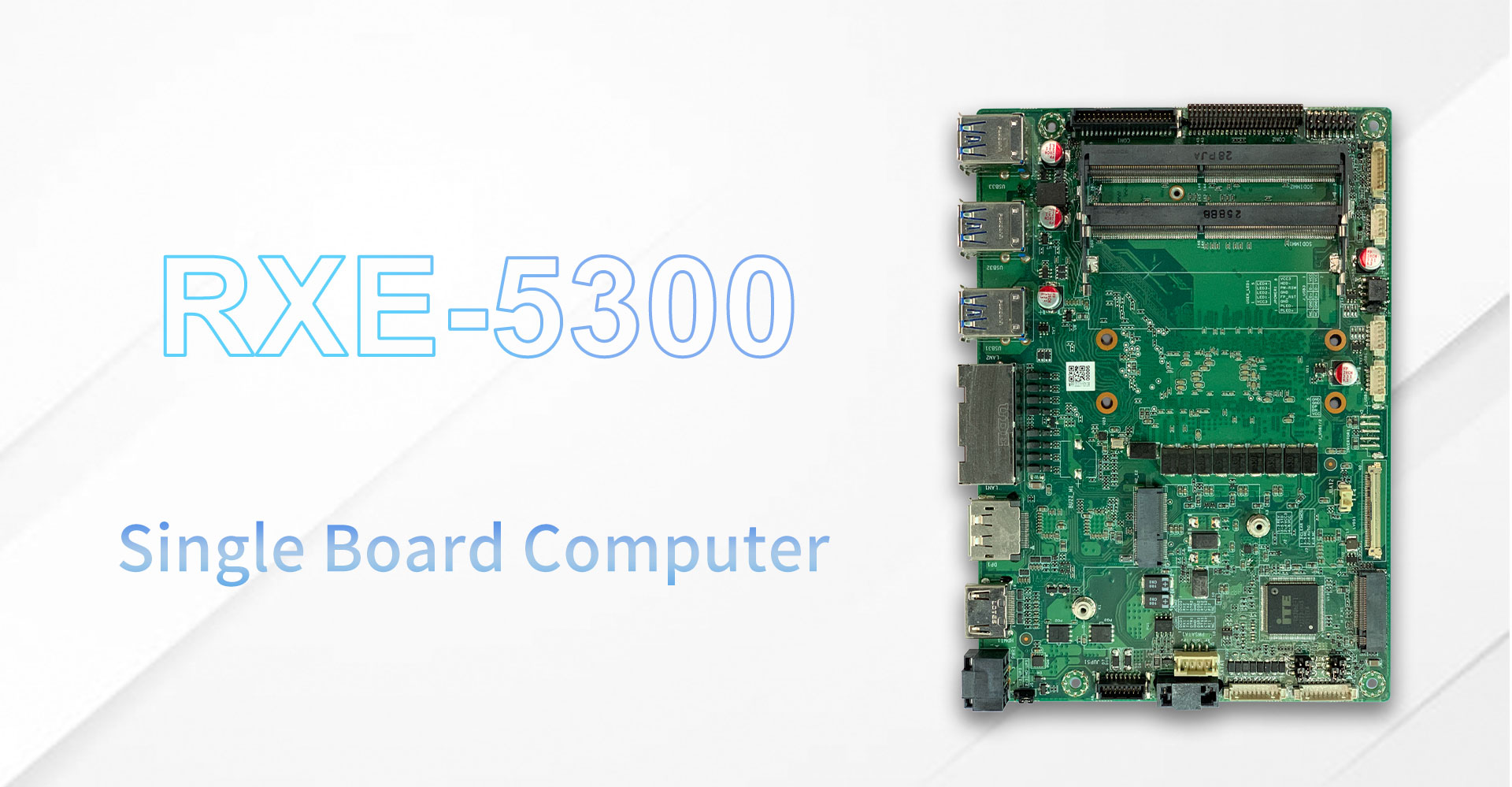

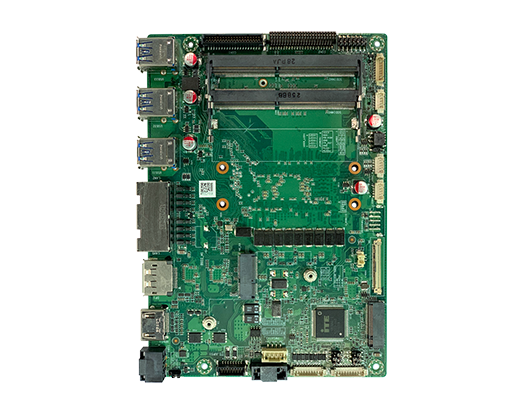

规格 Specifications
Item | Sub-Item | Description |

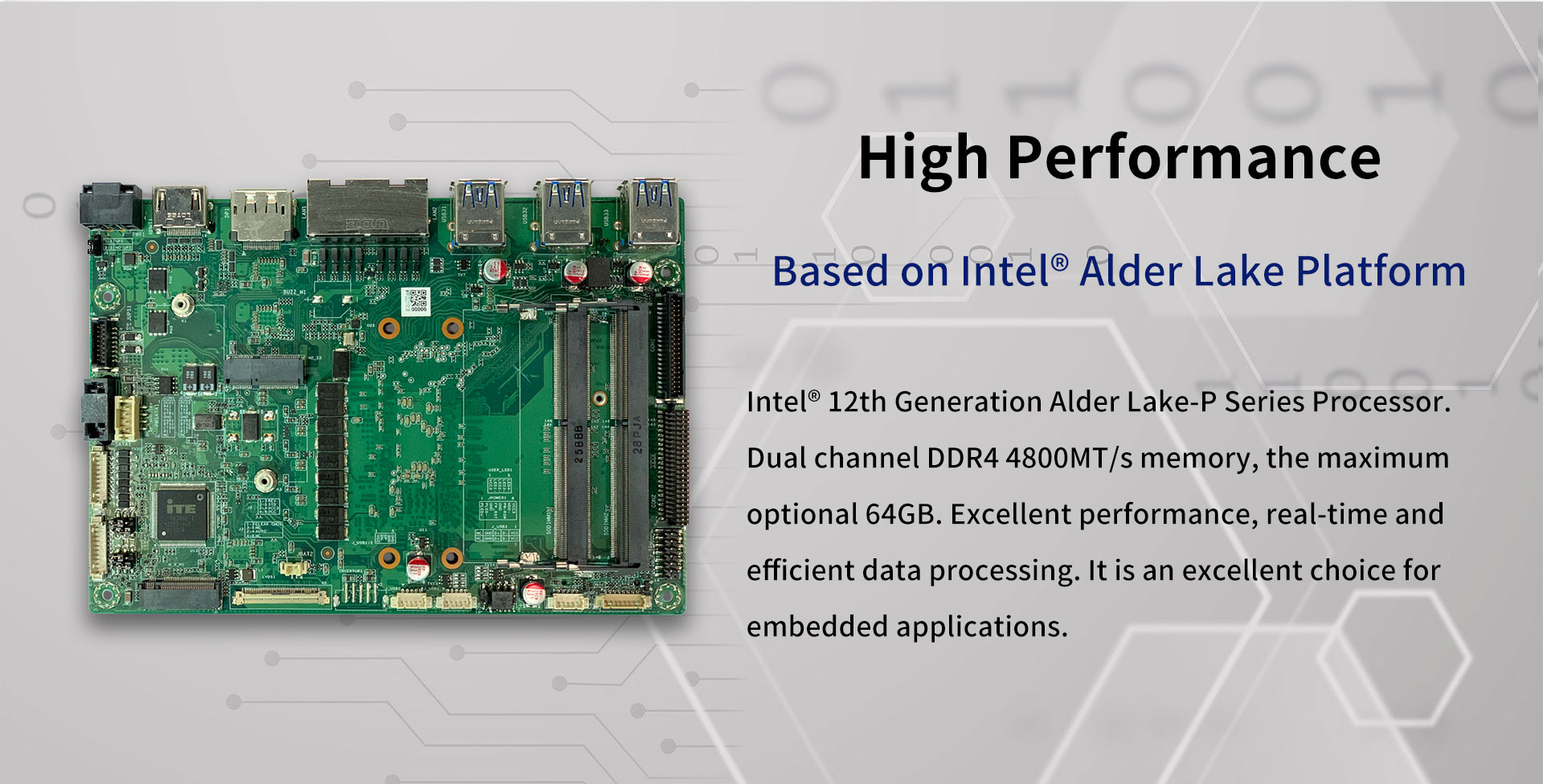

Processor System | CPU | Intel Alder Lake-P |
TDP | 45W MAX | |
BIOS | AMI 128 Mbit SPI Flash | |
Memory | Technology | Dual channel DDR4 4800 |
Capacity | 64GB | |
| Socket | 2 x SO-DIMM | |
Graphics | Controller | Intel® Iris XeGraphics architecture with up to 96 Eus |
| Graphic features | 5K60 10b 4:4:4 HEVC/VP9/SCC, 8K60 12b 4:2:0 HEVC/VP9/SCC, 8K30 10b 4:2:0 AV1, 4K60 8b 4:2:0 AVC | |
Display | DP | 1 |
HDMI | 1 | |
LCD1 | 1 | |
External I/O | USB 3.0 | 6 |
| HDMI | 1 | |
| Ethernet | 2 x Intel i225/i226-V | |
Internal Connectors | USB 2.0 | 3 |
LCD1 | 1 x eDP or LVDS Dual Channel 18/24-bit,up to 1920x1200 | |
SATA 3.0 | 1 | |
| SATA Power | 1 | |
| Serial Port | 1 x RS-232/422/485, 1 x RS-232 | |
| GPIO | 1 | |
| SIM | 1 x SIM | |
| Audio | 1 X Line-out, 1 x Mic-in | |
| eSPI Bus | 1 | |
| SMBus | 1 | |
| Invertor | 12V/5V selectable | |
| CPU FAN | 1（12V/5V) | |
| SYS FAN | 1 | |
| Front Panel Control | 1 Power-on,Reset,SATA LED,Power LED | |
| Buzzer | 1 | |
| User LED | 4 (User1/User2/User3/User4) | |
| RTC Battery | 1 | |
| UPS | 1 | |
| Jumps or DIP | eDP Power&Backlight ADJ | 1 |
| Auto Power on/Load BIOS | 1 | |
| Expansion | M.2 E-Key | 1 x M.2 E-Key 2230 support Wifi |
| M.2 B-Key | 1 x M.2 B-Key 3052 support 4G/5G | |
| M.2 M-Key | 1 x M.2 B/M-Key 2280 support SSD(PCIe x4) | |
| Board to Board | 4 x PCIe x 1/USB2.0/1I2C/1eSPI/4TX/RX/8GPIO | |
| Board Feature | Watchdog Timer | 65536 lever, 0~65535 sec |
| TPM | TPM 2.0 | |
OS | OS | Windows 10 /Linux |
Power Requirement | Supply Voltage | DC 9-36V ± 5% |
| Power Management | AT/ATX | |
| Max. Consumption | 90W | |
| Test Environment | Intel Core i7-1270P DDR5 32GB X2 | |
Environment | Temperature | Operating -25 ~ 60 °C,Extend -40~85℃ Non-Operating -40 ~ 85 °C (-40 ~ 185 °F) |
Humidity | Operating 40 °C @ 95% RH Non-condensing Non-Operating 60 °C @ 95% RH Non-condensing | |
| Physical characteristic | Dimensions | 165 x 115mm |
