Specifications
| Specs | Item | E211 Series | |
Processor System | CPU | Intel® Elkhart Lake platform J6412/N6210/X6425E CPU | |
| TDP | 12W Max | ||
| BIOS | AMI 128Mbit SPI Flash | ||
Memory | Technology | 2 x DDR4 3200MT/s SO-DIMM | |
Max. Capacity | 32 GB | ||
Graphics | Controller | Intel Gen11 Graphics Engines (SoC integrated) | |
Features | DX12, OGL4.5, OCL1.2, Vulkan 1.1, MPEG2, H.264, JPEG/MJPEG, H.265 (HEVC) | ||
External IO | DP | 1 x DP1.4up to 4096 x 2160@60Hz | |
| HDMI | 1 x HDMI 2.0b, up to 4096 x 2160@60Hz | ||
| Ethernet | 2 x Intel i210-AT GbE LAN, 1 x Intel i226-V 2.5GbE LAN | ||
| COM | COM1: RS-232/422/485, COM2: RS-232, COM3~4: RS-232/485 | ||
USB | 2x USB2.0, 2 x USB3.0 | ||
Power DC Jack | Phoenix 4pin | ||
| Expansion | M.2 E-Key | 1 x M.2 2230 Support Wi-Fi | |
| M.2 B-Key | 1 x M.2 3052 Support 4G/5G | ||
| M.2 M-Key | 1 x M.2 2280 Sata3.0 | ||
| SATA | 1x SATA3.0 | ||
| Internal USB2.0 | 3 x Internal USB2.0 (Pinout), 1 x Internal USB Type-A | ||
| SIM | 1 x Nano SIM | ||
| LED | LED Lights | Power status, HDD R/W,USER1,USER2 | |
| Power | Supply Voltage | DC 9-36V ±10% | |
| Max. Consumption | 30W | ||
| Power Management | AT/ATX | ||
Others | Watch Dog | Timer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds | |
TPM | TPM 2.0(optional) | ||
Environment | Operating Temperature | 0 ~ 60 °C(32~140°F) | |
Storage Temperature | -40°C ~ 85°C(-40~185°F) | ||
Relative Humidity (Operating) | 95% @ 40 °C (non-condensing) | ||
Relative Humidity(Storage) | 95% @ 60 °C (non-condensing) | ||
| Physical Characteristics | Dimensions | 172 x 125 x 62.5mm(Lx Wx H) | |
| Installation | Wall-mounting/Din Rail | ||
| Certification | EMC | CE, FCC | |
| OS Support | OS Support | Windows 10/11, centos 8, ubuntu 20.04/22.04 | |
Dimensions

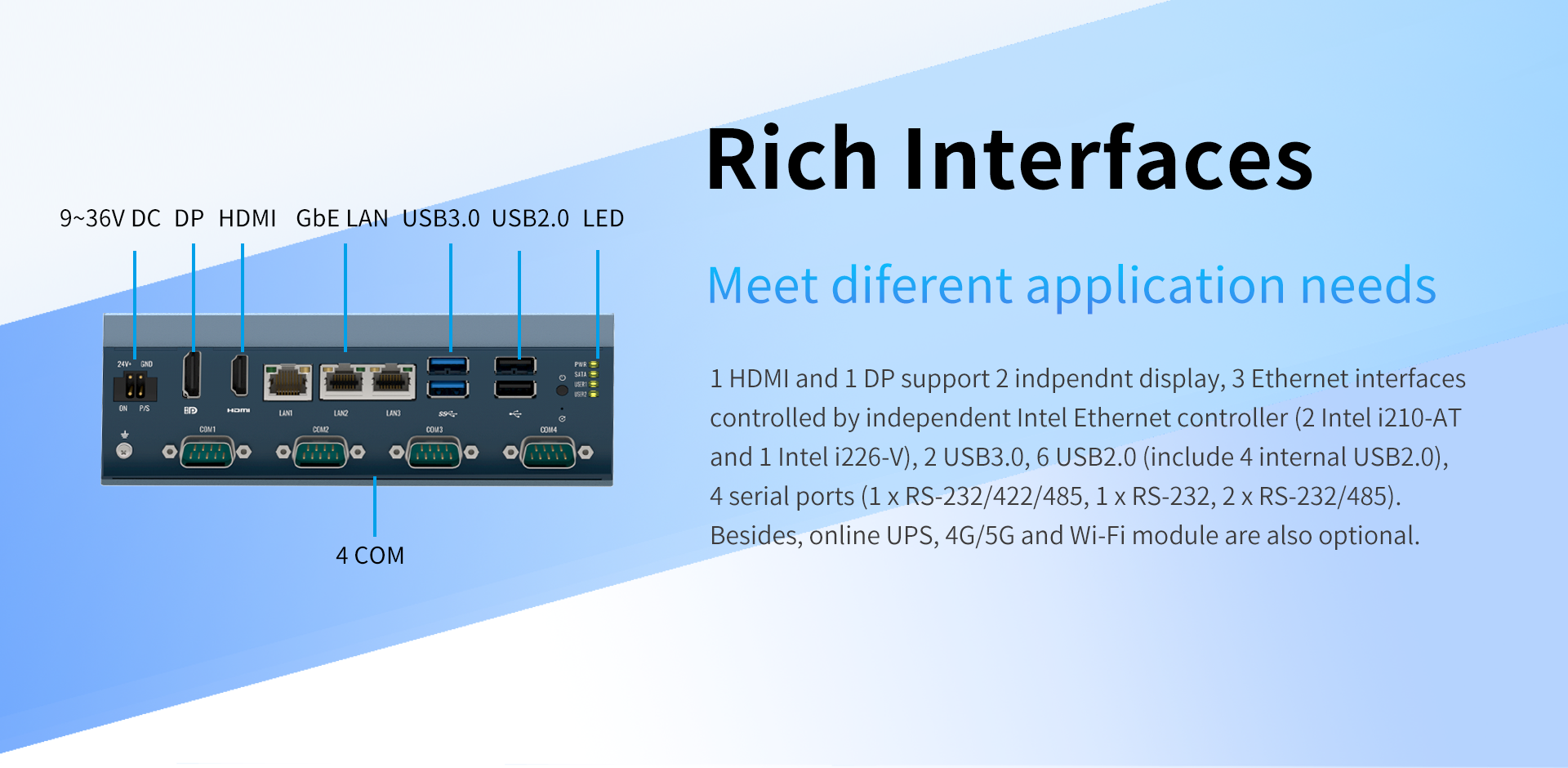

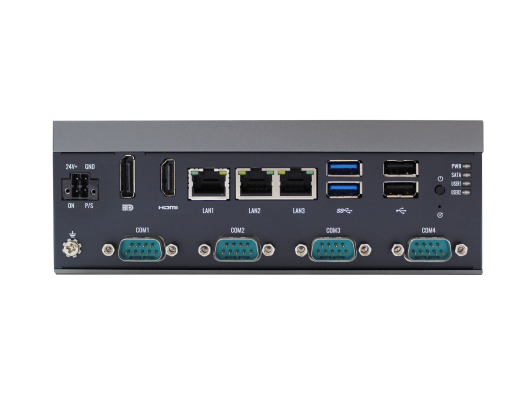

Interfaces
