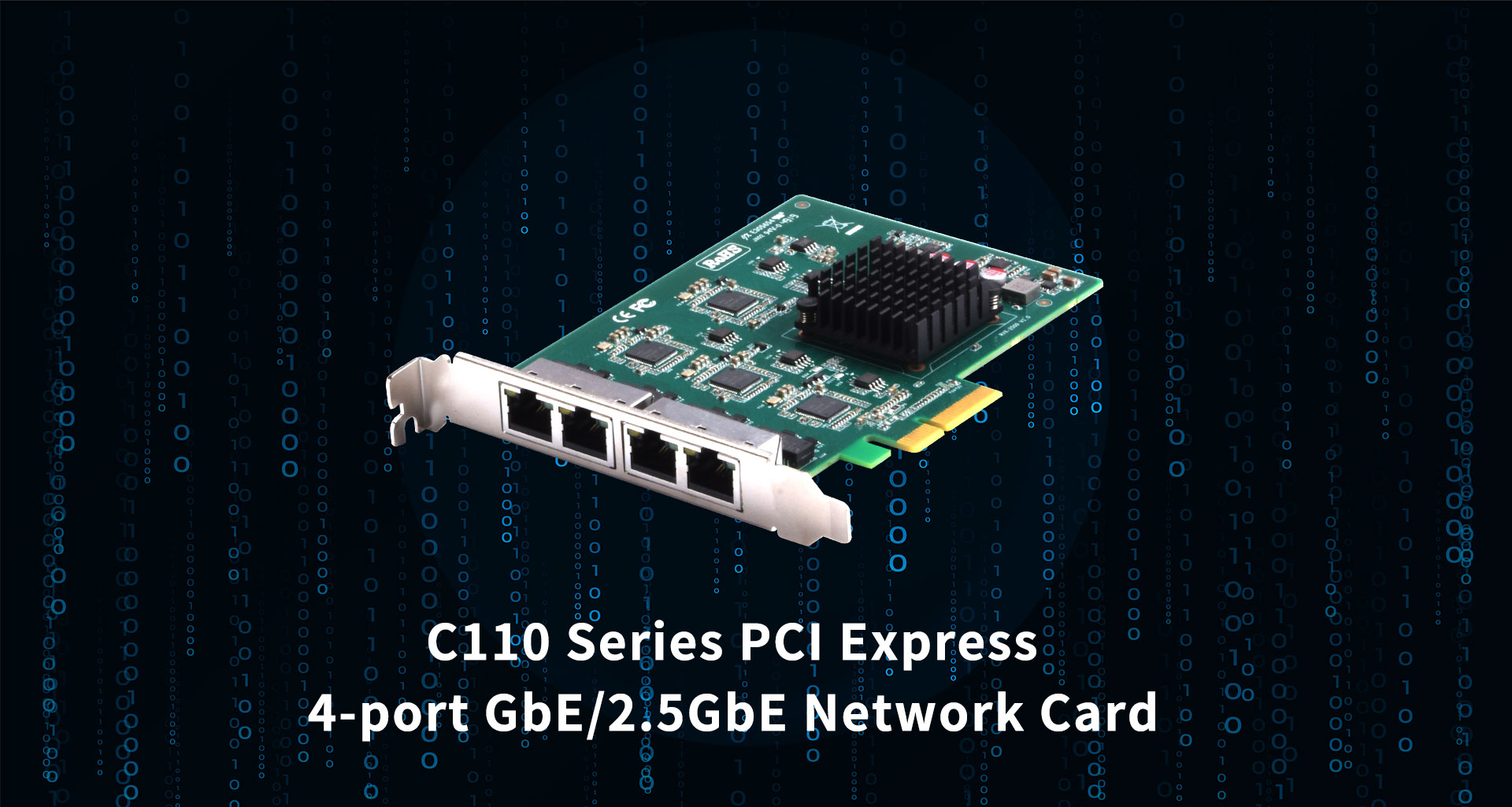

C110 Series
• Designed with PCI Express bus interface
• 4 x Intel i210-AT/i211-AT/i225-V GbE LAN
• Support 10/100/1000M/2.5G rate, full-duplex half-duplex self-adaptive
• Capture images in extreme environments without losing frames
• Support Windows 7/8/10 Linux system
  • 香港六和资料大全
    /
  • 香港六和资料大全
    /
  • 香港六和资料大全
    /
  • 香港六和资料大全
    4 x Intel i210-AT/i211-AT/i225-V GbE LAN
  • 香港六和资料大全
    /
  • 香港六和资料大全
    Windows 7/8/10, Linux
  • Product Details
  • Specification
  • Application
  • Download





规格 Specifications




C110 -100C110 -200C110 -300

Specs

PCI Express x4

Ethernet

4 x 10/100/1000M/2.5G bps RJ45 Ethernet port

4 x 10/100/1000M/2.5G bps RJ45 Ethernet port

Full-duplex, half-duplex intelligent detection self-adaption

Chip

Intel I210-AT

Intel I211-ATIntel I225-V

Standard

Compatible with IEEE 802.1P/ 802.1Q/802.3 10Base-T/802.3u 100Base-TX/802.3ab 1000Base-T

Compatible socket

PCI-E 16x/8x/4x (PCIe x2/x1 requires connector rear opening)

Nerwork environment

Gigabit and below network

2.5G and below network

Indicator light

ACT：The indicator light is flashing, the port has data sending and receiving

LINK: When the indicator light is on, it indicates that the link is normal

Operation environment

Operation temperature： 0˚C ~ +70˚C

 Storage temperature：－40˚C~ +70˚C

Humidity: 5%~90% relative humidity, non-condensing
Operation systemWindows 7/8/10, Linux

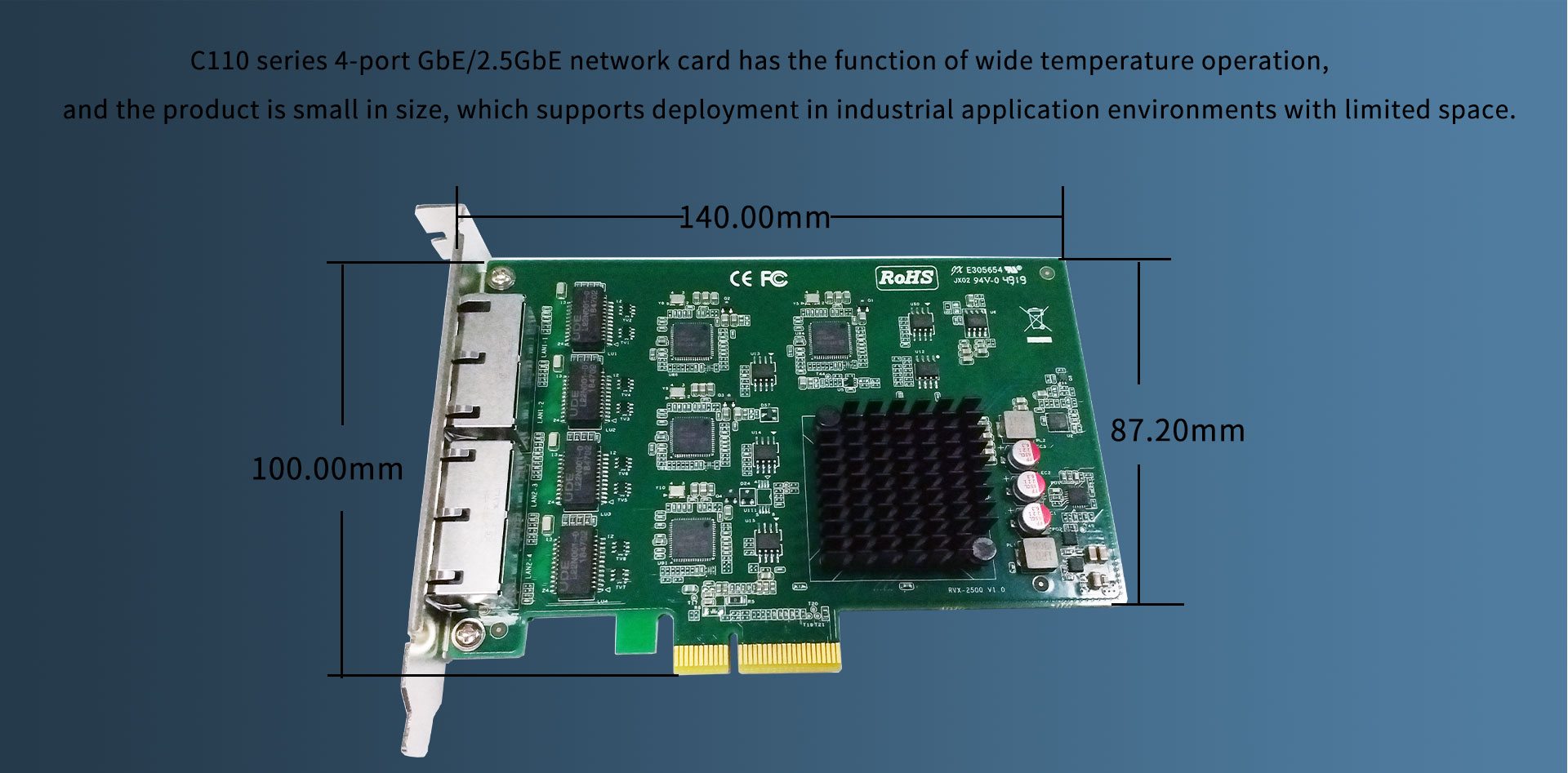

Size140 mm x 100 mm (W x H)




尺寸图 Demensions
