规格 Specifications

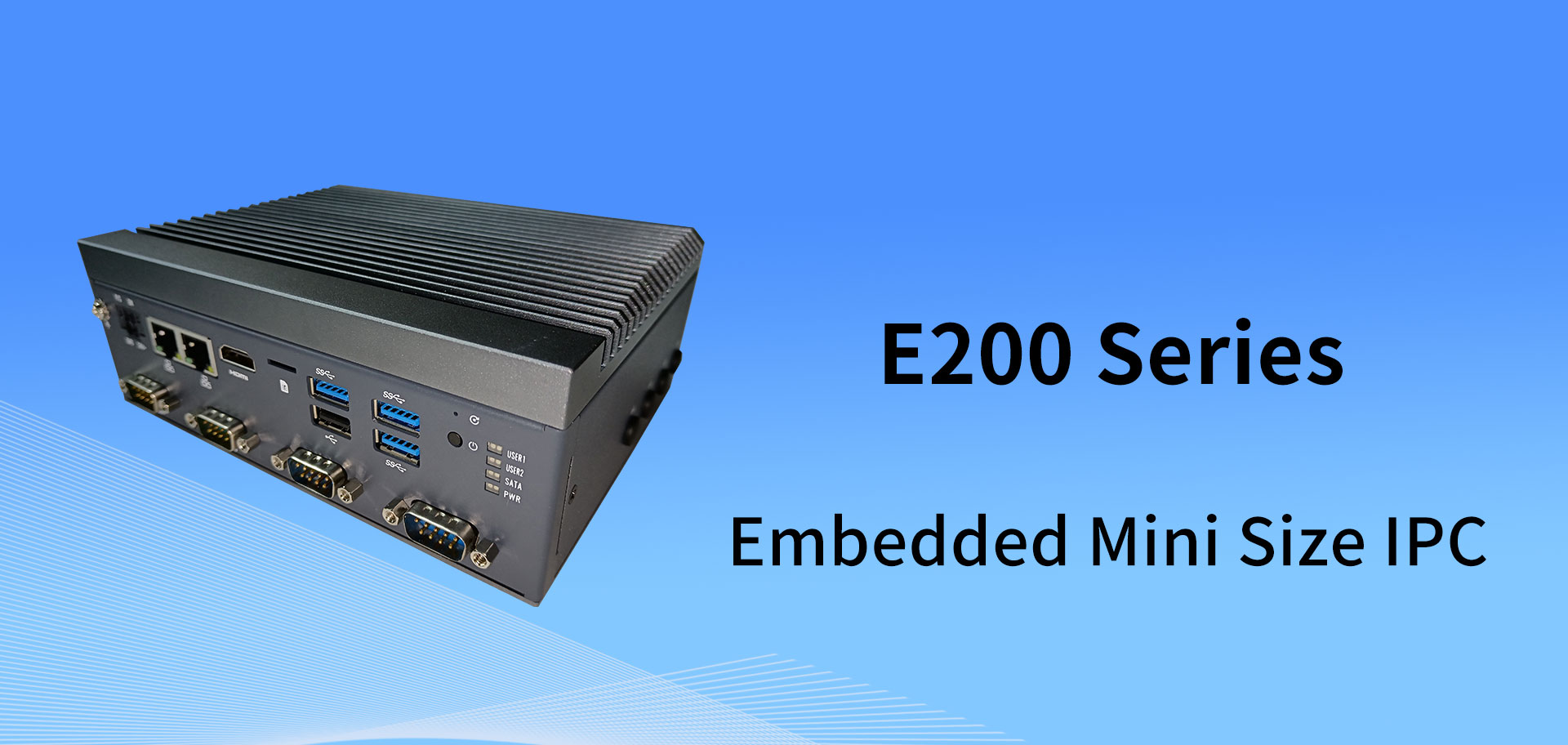

| Specs | Item | E200 Series | |

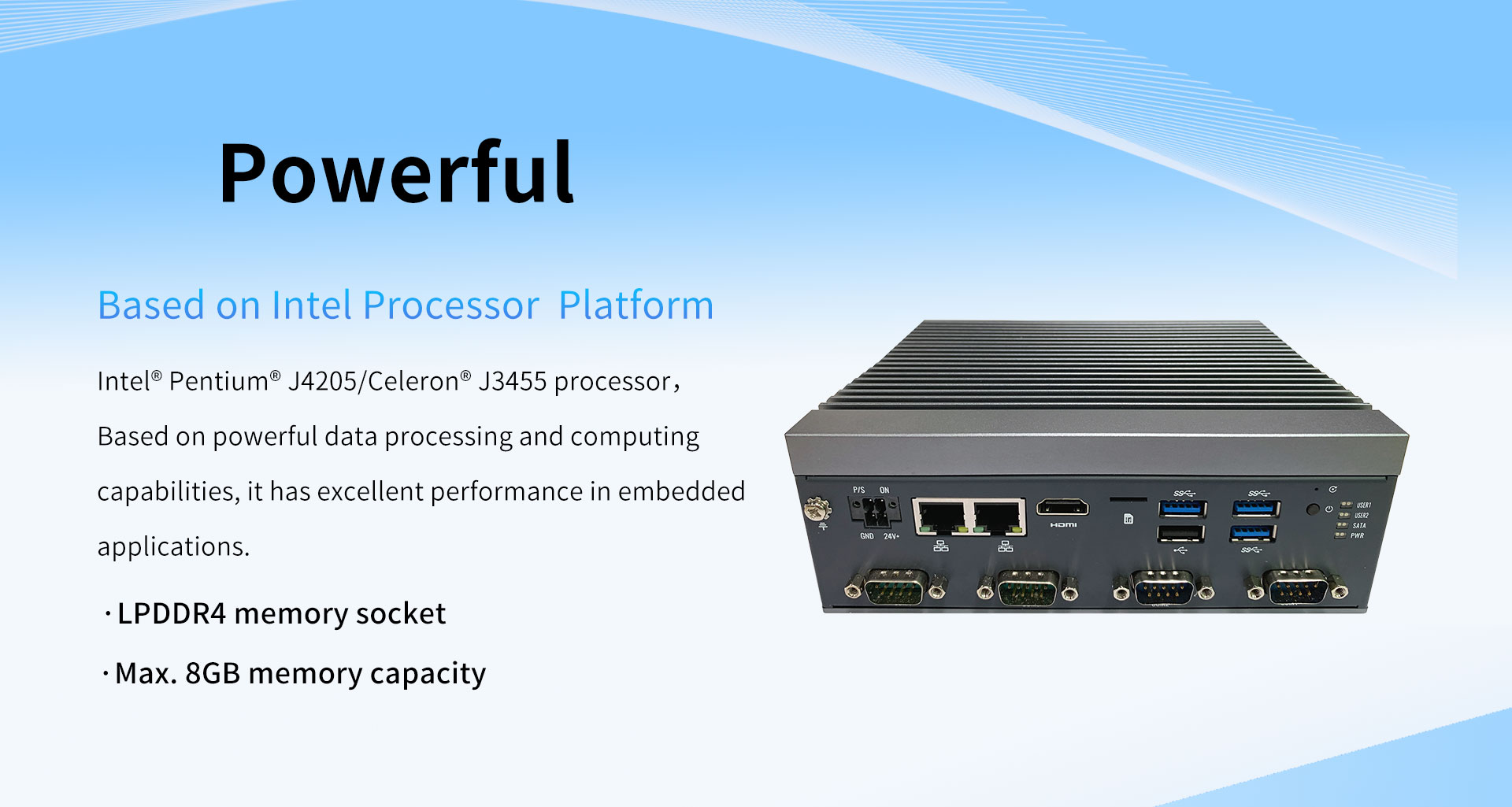

Processor System | CPU | Intel® 6th/7th/8th/9th Gen Processors with LGA1151 | |
| BIOS | AMI EFI BIOS | ||
Memory | Sockets | LPDDR4 | |
Capacity | Max. 8 GB | ||
Display | Controller | Intel Gen9 Graphic engine | |
HDMI | Max. 3840 x 2160@30Hz | ||
Audio | HAD | 1 | |
Ethernet | Controller | 2 x Intel I225-V | |
| Storage | M.2 | 1 x M.2 B/M- Key 2280 support SATA 3.0 | |
| MSATA | 1(internal interface) | ||
| SATA 3.0 | 1 | ||
I/O Interface | USB 3.0 | 3 | |
USB 2.0 | 1 | ||
COM | 1 x RS-232/422/485, 3 x RS-232 or RS-485 | ||
Expansion | CAN | 2(optional) | |
GPIO | 8(optional) | ||
SIM | 1 x Mirco SIM | ||
| Power Supply | DC Input | 24V DC | |
OS | Microsoft Windows | Windows 10 64 Bit | |
Linux | Yes | ||

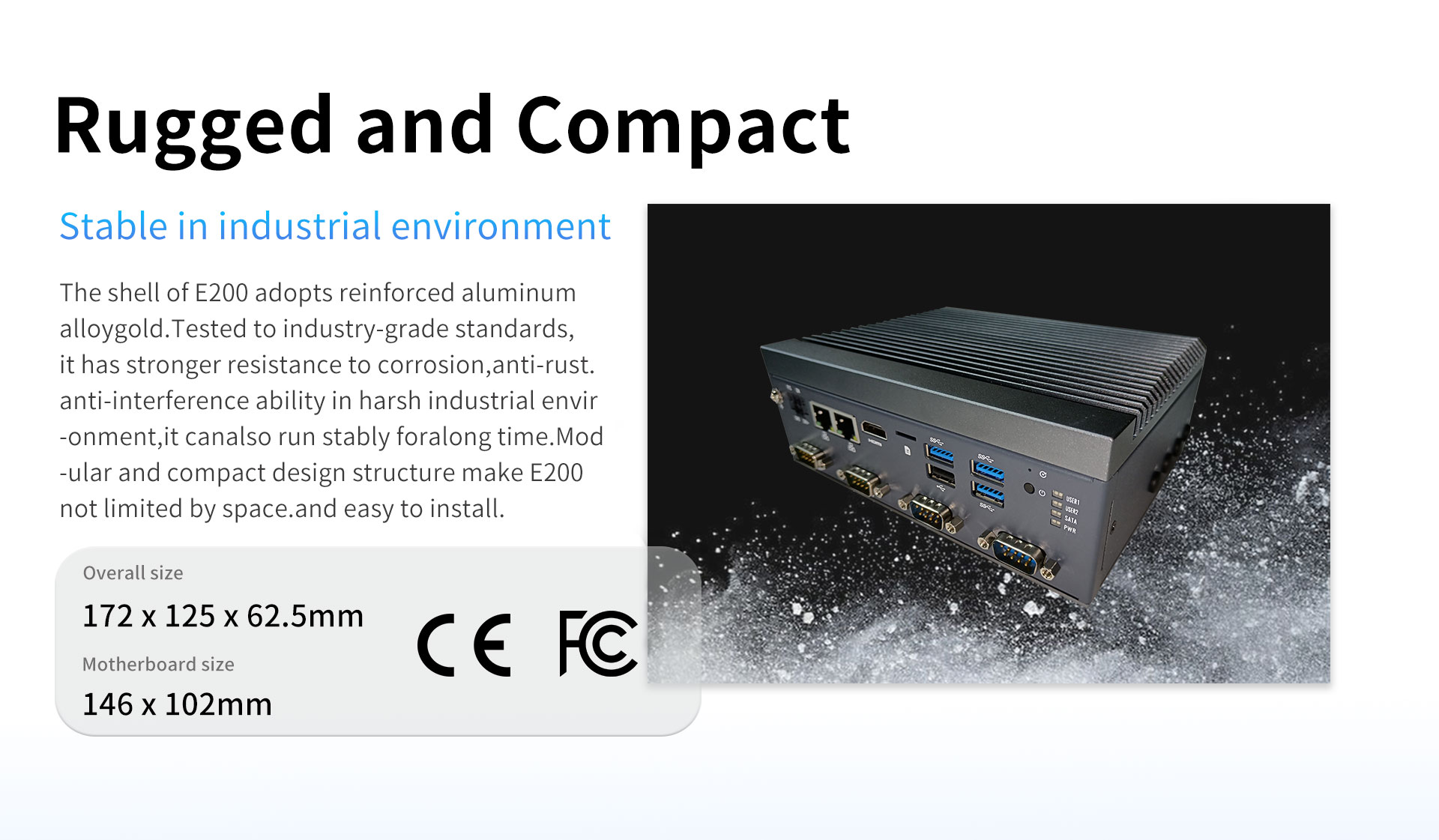

| Size | Motherboard size | 146 x 102 mm (LxWxH) | |
Machine demension | 172 x 125 x 62.5 mm | ||
Environment | Operating Temperature | 0°C~60°C, airflow 0.7m / s | |
Storage Temperature | -40°C~85°C | ||
Relative Humidity | 5~95% @ 40°C ( Non-Condensing ) | ||
EMC | CE/FCC | ||

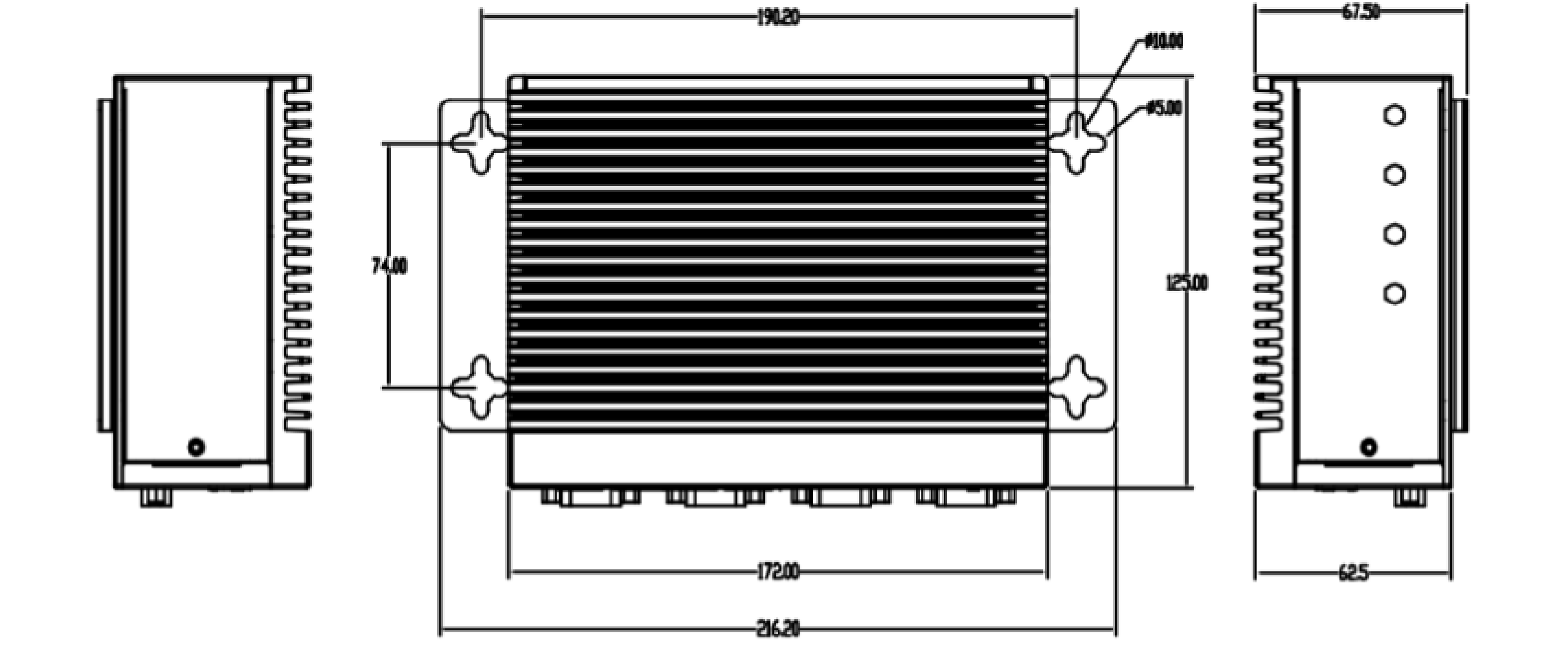

尺寸图 Demensions

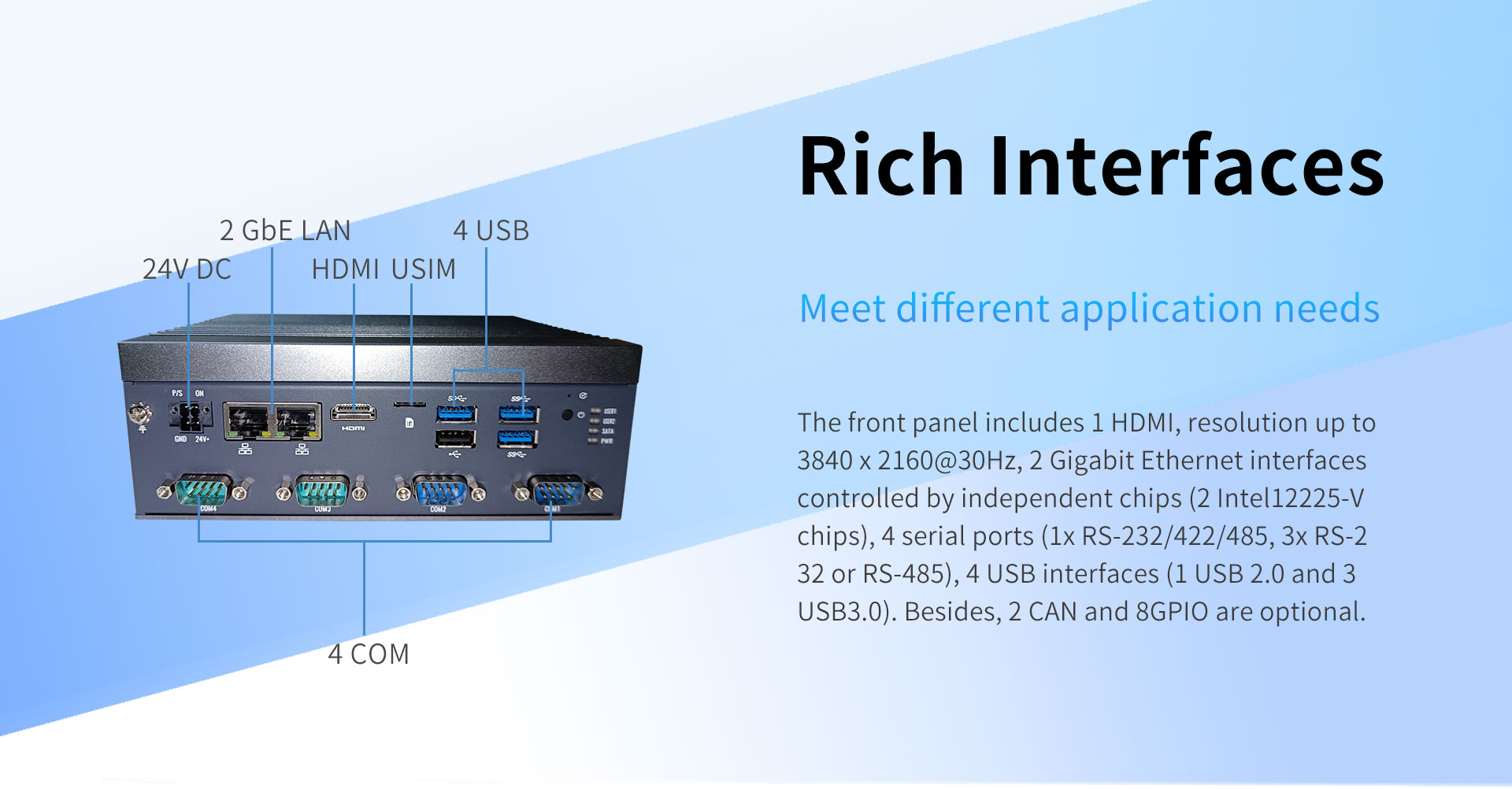

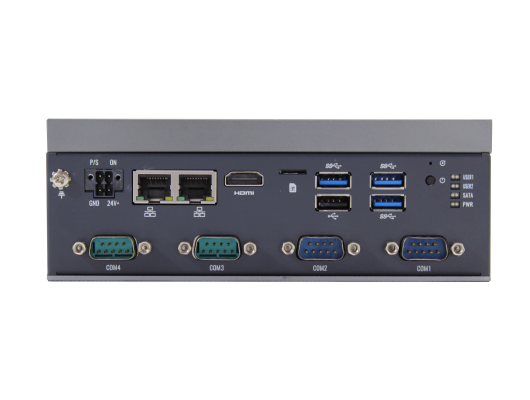

接口图 Interfaces
