Processor System

CPU

Intel® Apollo Lake N3350/J3355/N4200/J4205 系列处理器

AMI 8MB UEFI

Memory

Sockets

DDR3L 1600 MHz

Capacity

2GB (Max. 8GB)

Display

DP

1, Max. resolution 4096 x 2160@60Hz

HDMI

1, Max. resolution 3840 x 2160@60Hz

Dual Display

Audio

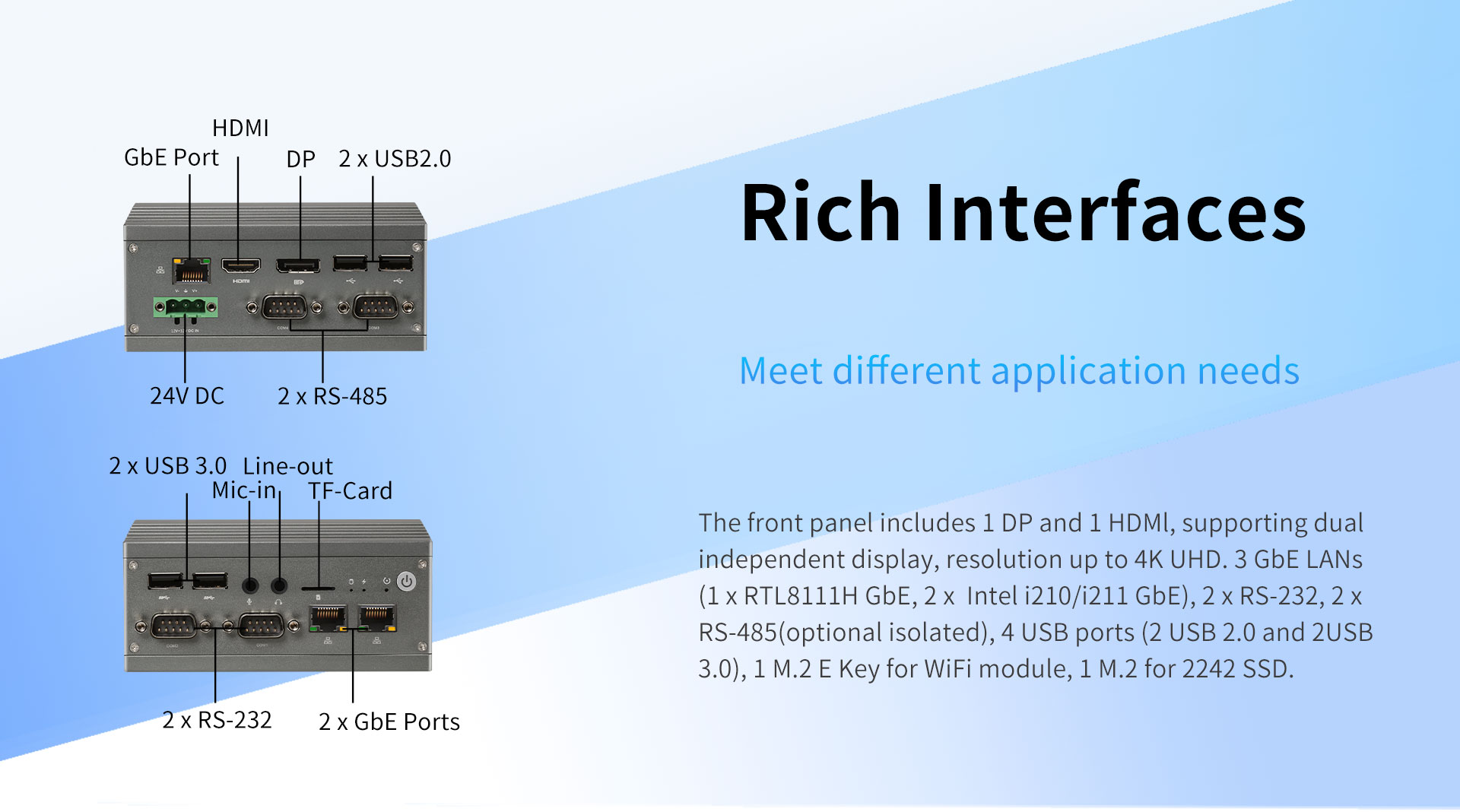

I/O

Realtek ALC662,High Definition Audio, Line Out & Line In

Ethernet

LAN

1 x RTL8111H GbE, 2 x Intel i210/i211-AT GbE

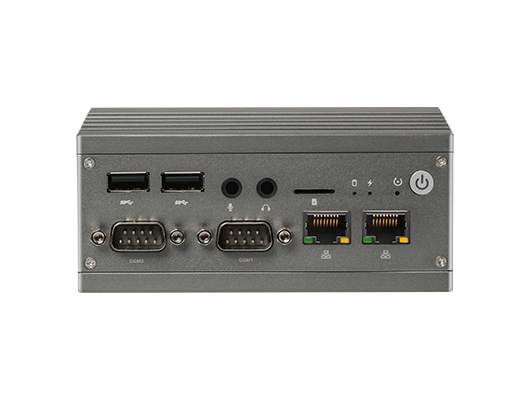

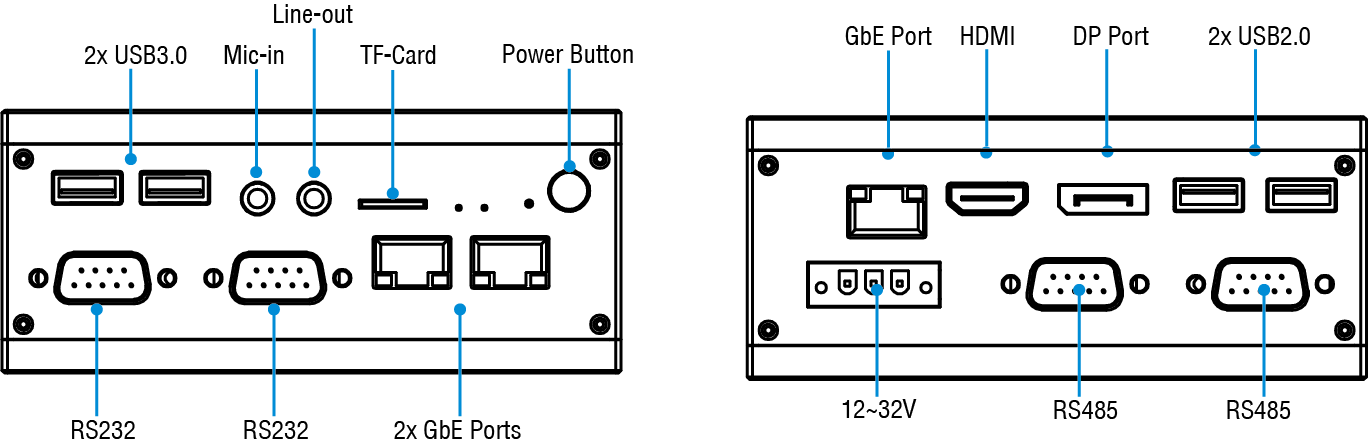

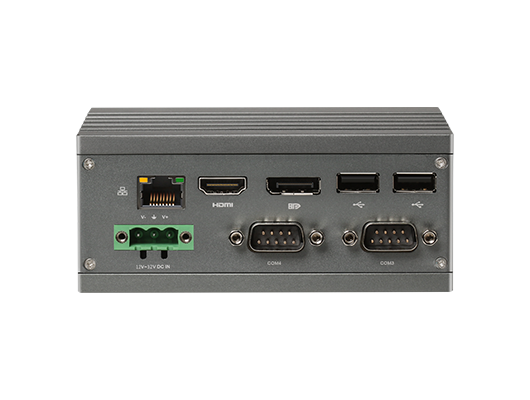

I/O Interface

2 x USB2.0, 2 x USB3.0

COM

2 x RS232, 2 x RS485

Expansion

1 x full size Mini-PCIe, support WLAN/WWAN module

Storage

1 x 2242 SSD

eMMC

MAX. 256GB

OS

MicrosoftWindows

Windows 10 64Bit

Linux

Yes

Physical Characteristics

Construction

Aluminium Alloy

Mounting

Wall Mounting

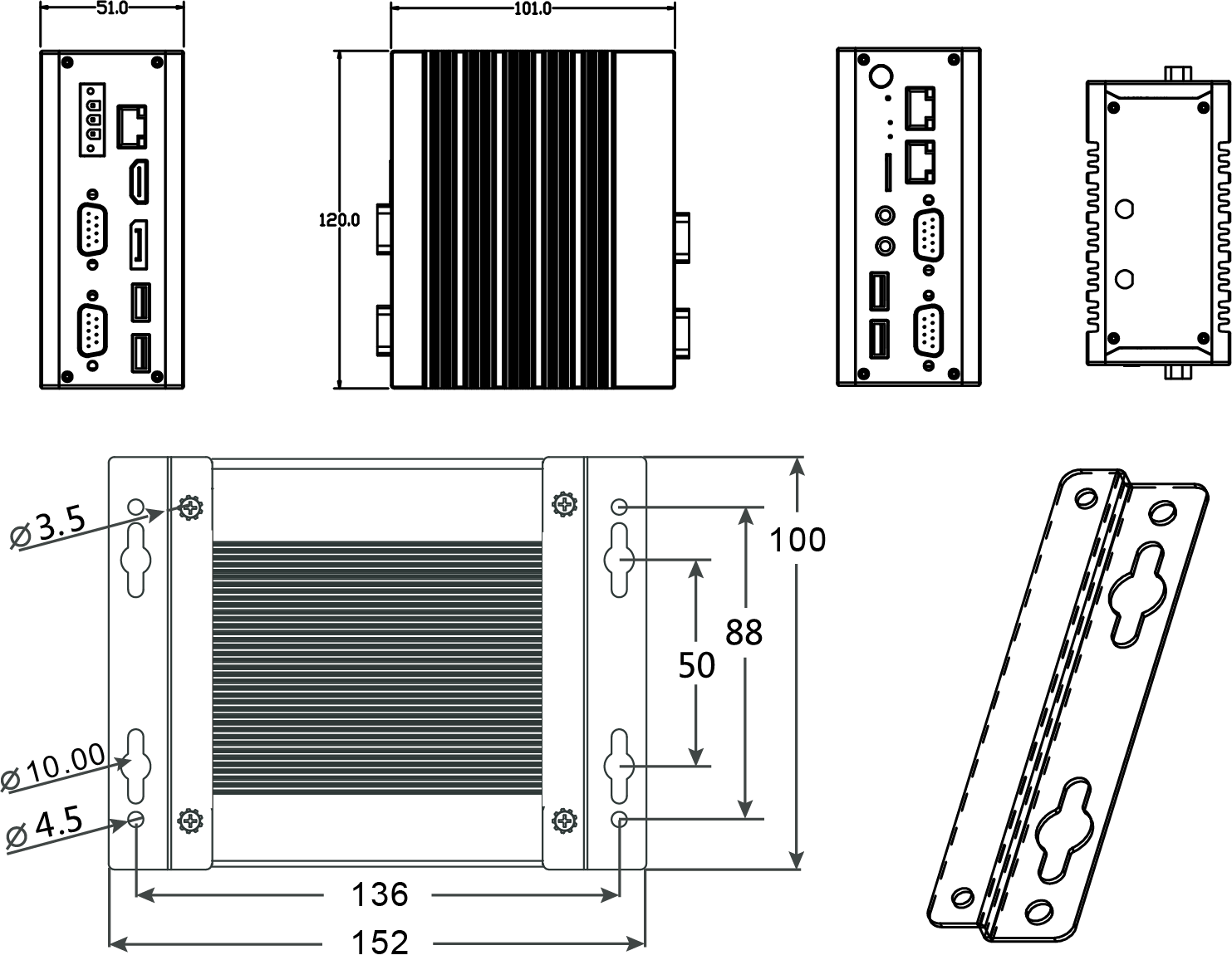

Dimensions

120x100x51 mm(LxWxH)

Weight

0.65 Kg

Environment

Operating Temperature

-20°C~60°C, Airflow 0.7m / s

-40°C~80°C

Relative Humidity

95%@40°C(Non-Condensing)

Vibration During Operation

With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis

Shock During Operation

With SSD:30 G, IEC 60068-2-27, half sine, 11m duration

ESD

Contact +/-4 KV, Air +/-8 KV

EMC

CE/FCCClassB
