规格 Specifications
Item | Sub-Item | Description |

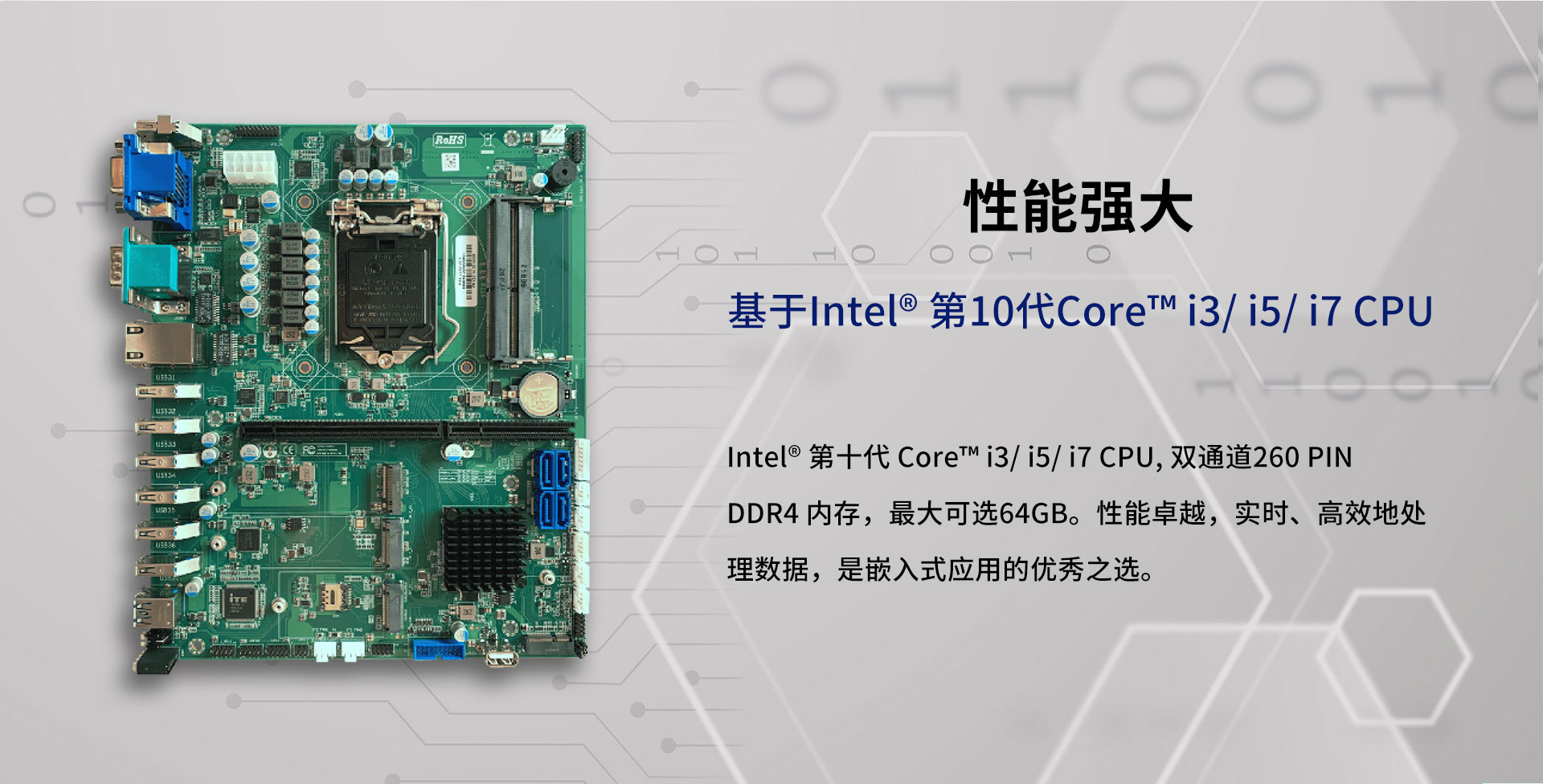

Processor System | CPU | Intel Comet Lake-S |
TDP | 65W MAX | |
| Socket | ||
| Chipset | ||
BIOS | AMI 128 Mbit SPI Flash | |
Memory | Technology | Dual channel DDR4 |
Capacity | 64GB | |
| Socket | 2 x 260 PIN SO-DIMM | |
| Ethernet | Interface | 10/100/1000 Mbps |
| Controller | GbE LAN1: Intel I219-LM, GbE LAN2 Intel I225-LV | |
| Connector | 2 x RJ-45 | |
| SATA | Max Data Transfer | 600 MB/s |
| Channel | 2 | |
| RAID | 0,1,5(Option，only Q470） | |

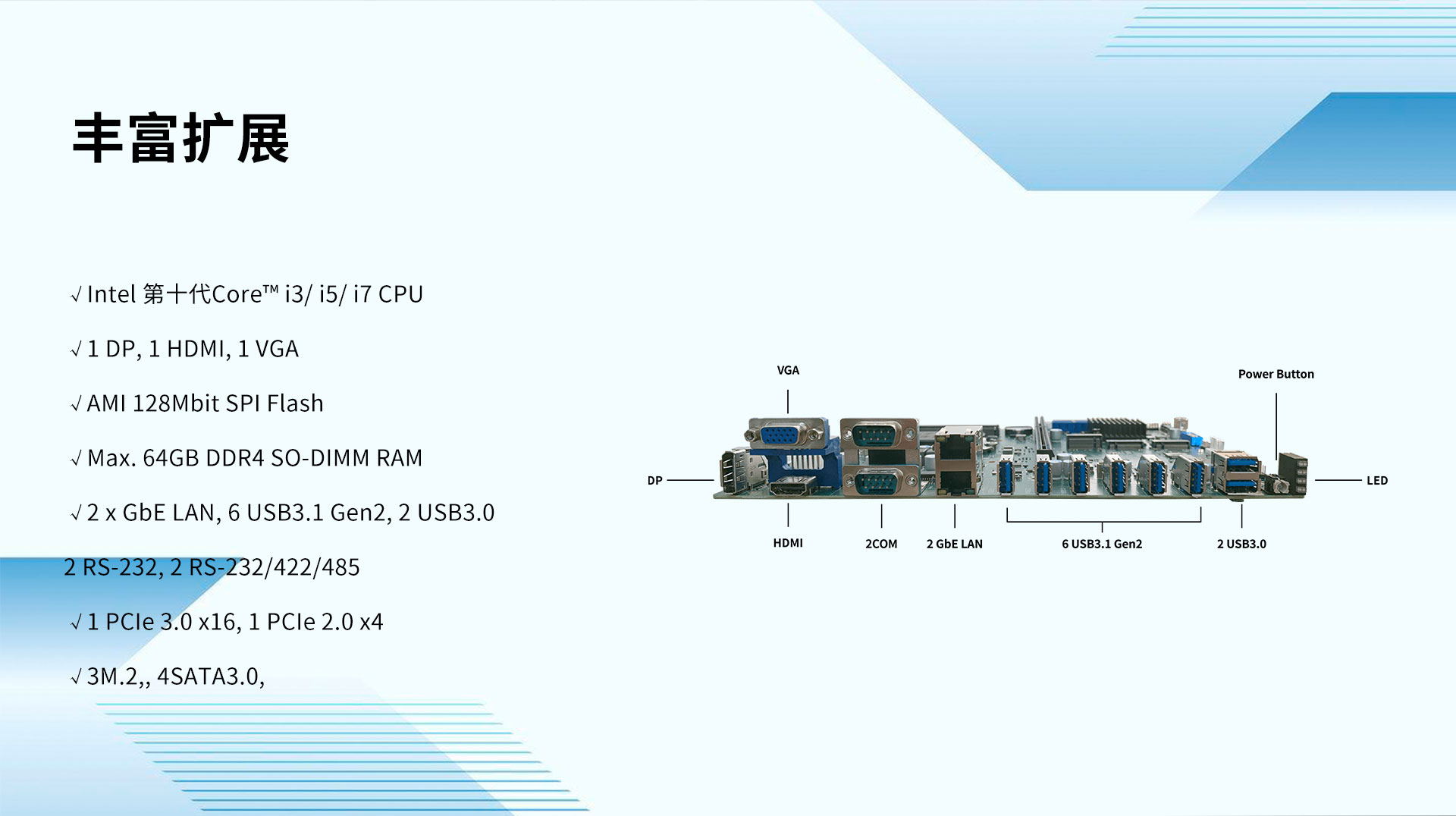

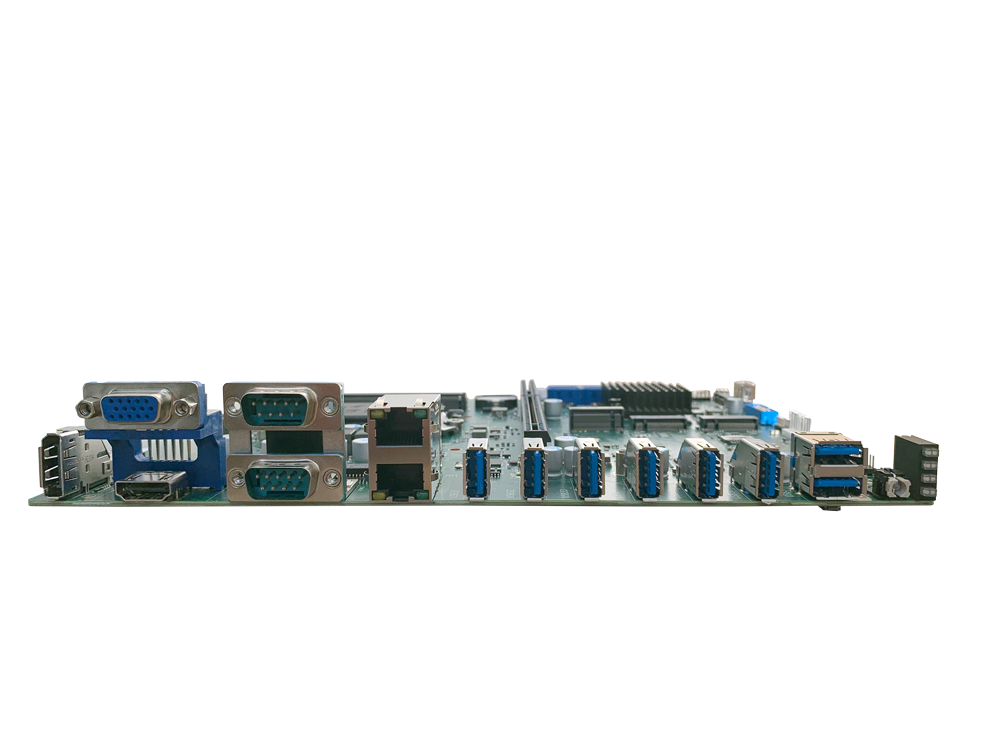

| Rear I/O | DP | 1(Resolution up to 4096 x 2304 @ 60 Hz) |
| HDMI | 1 HDMI1.4 up to 4096x2160@30Hz | |
| VGA | 1 Max Resolution up to 1920 x 1200@60Hz | |
| Ethernet | 2 | |
| Serial port | 2*RS-232/RS-485/RS-422/2*RS-232 | |
| USB | 6 x USB3.0 Type A （USB 3.1 Gen 2）PCH Primary | |
| 2 x USB3.0 Type A | ||
| DIO | 16xDI, 16 DO | |
Internal Connectors | Serial | 2*RS-232 PIN Header |
USB2.0 | 1 x USB2.0 Type A、 1 x USB2.0 PIN Header (9PIN) | |
SATA | 2, Support 7PIN +15PIN 2.5 Inch HD | |
| Expansion | M.2 E-Key | 1 x M.2 E-Key 2230 support Wifi |
| M.2 B-Key | 1 x M.2 B-Key 3052 support 4G/5G | |
| M.2 M-Key | 1 x M.2 B/M-Key 2280 support SSD(PCIe x4) | |
| Expansion slot | PCIe x16(Gen3) | 1 |
| PCIe x4(Gen2) | 1 | |
| Watchdog Timer | Output | System reset |
| Interval | Programmable 1 ~ 255 sec | |
OS | OS | Windows 10 /Linux |

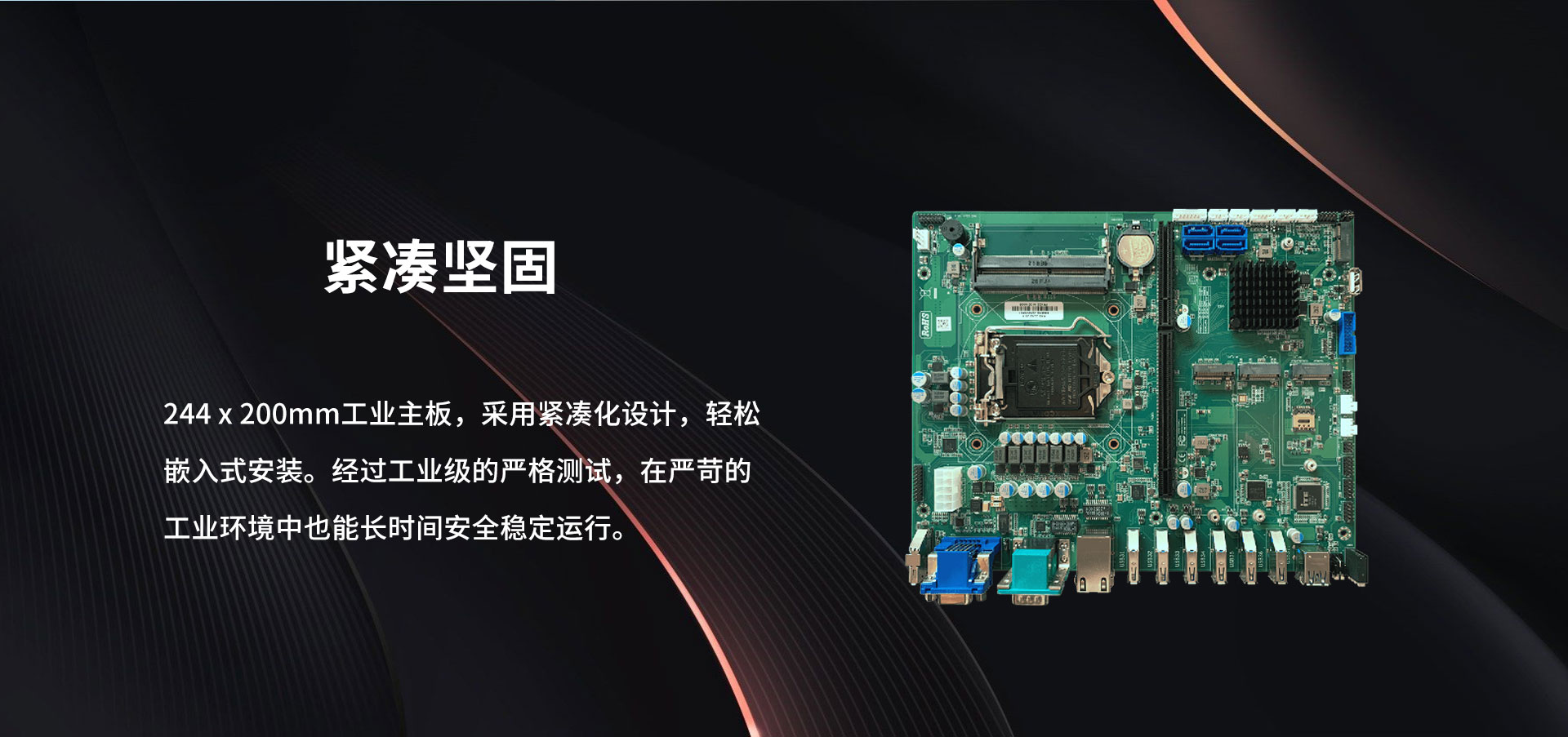

| Physical charateristic | Dimension | 244 x 200 mm |
| Power requirment | Test Environment | Intel Core i7-10700 DDR4 16GB X2 |
Environment | Temperature | Operating 0 ~ 60 °C (32 ~ 140 °F) Non-Operating -40 ~ 85 °C (-40 ~ 185 °F) |
Humidity | Operating 40 °C @ 95% RH Non-condensing Non-Operating 60 °C @ 95% RH Non-condensing |
