规格 Specifications
Item | Sub-Item | Description |

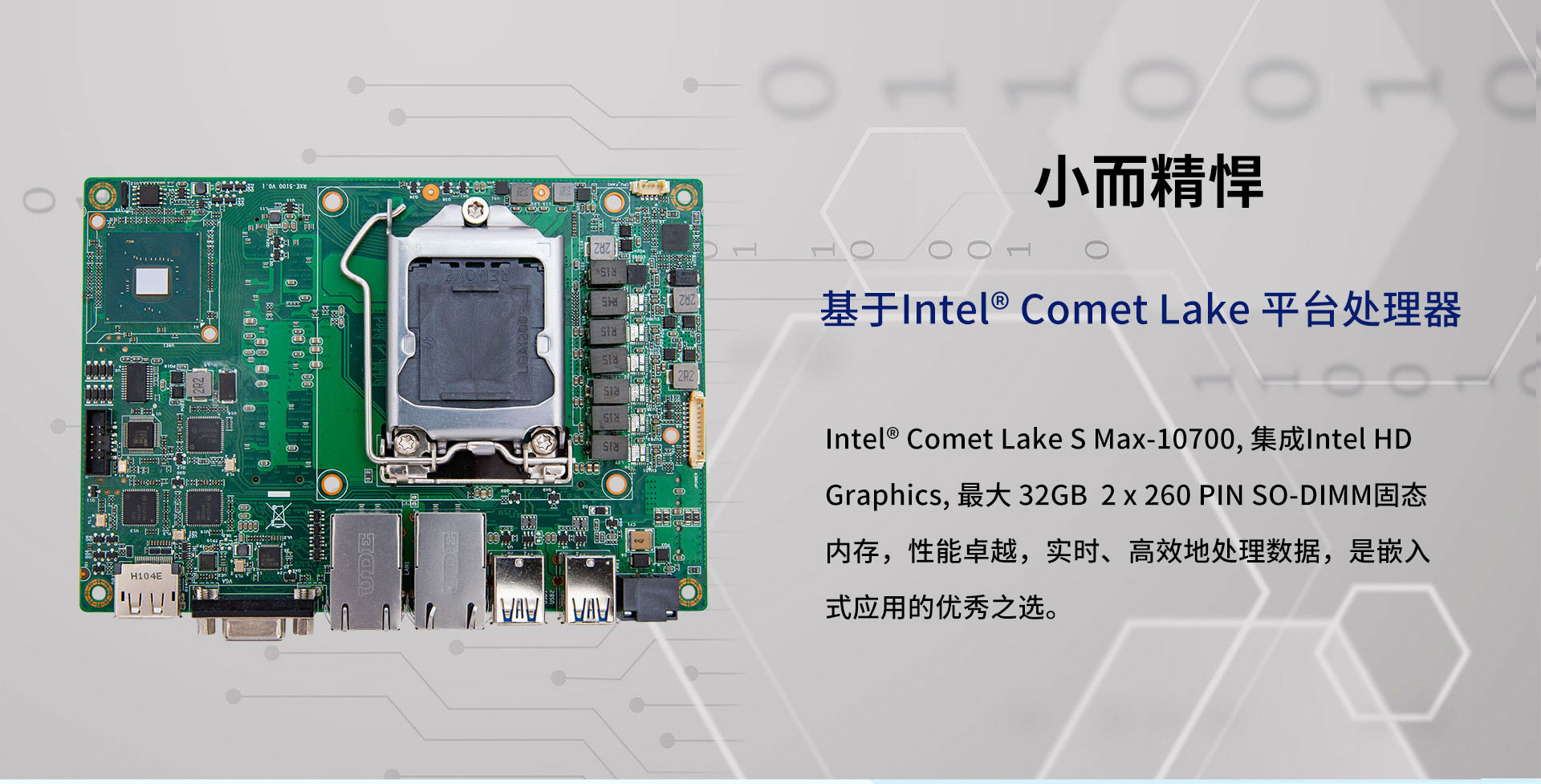

Processor System | CPU | Intel Comet Lake-S Max i7-10700 |
TDP | MAX. 65W | |
BIOS | AMI UEFI BIOS at 64 Mbit SPI | |
Memory | Technology | Dual Channel (Non-ECC) DDR4 2x260 PIN 2400/2666/2933 |
Capacity | 32 GB | |
Graphics | Controller | Intel HD Graphics |
| VRAM | 1 GB maximum shared memory with 2 GB and above system memory installed | |

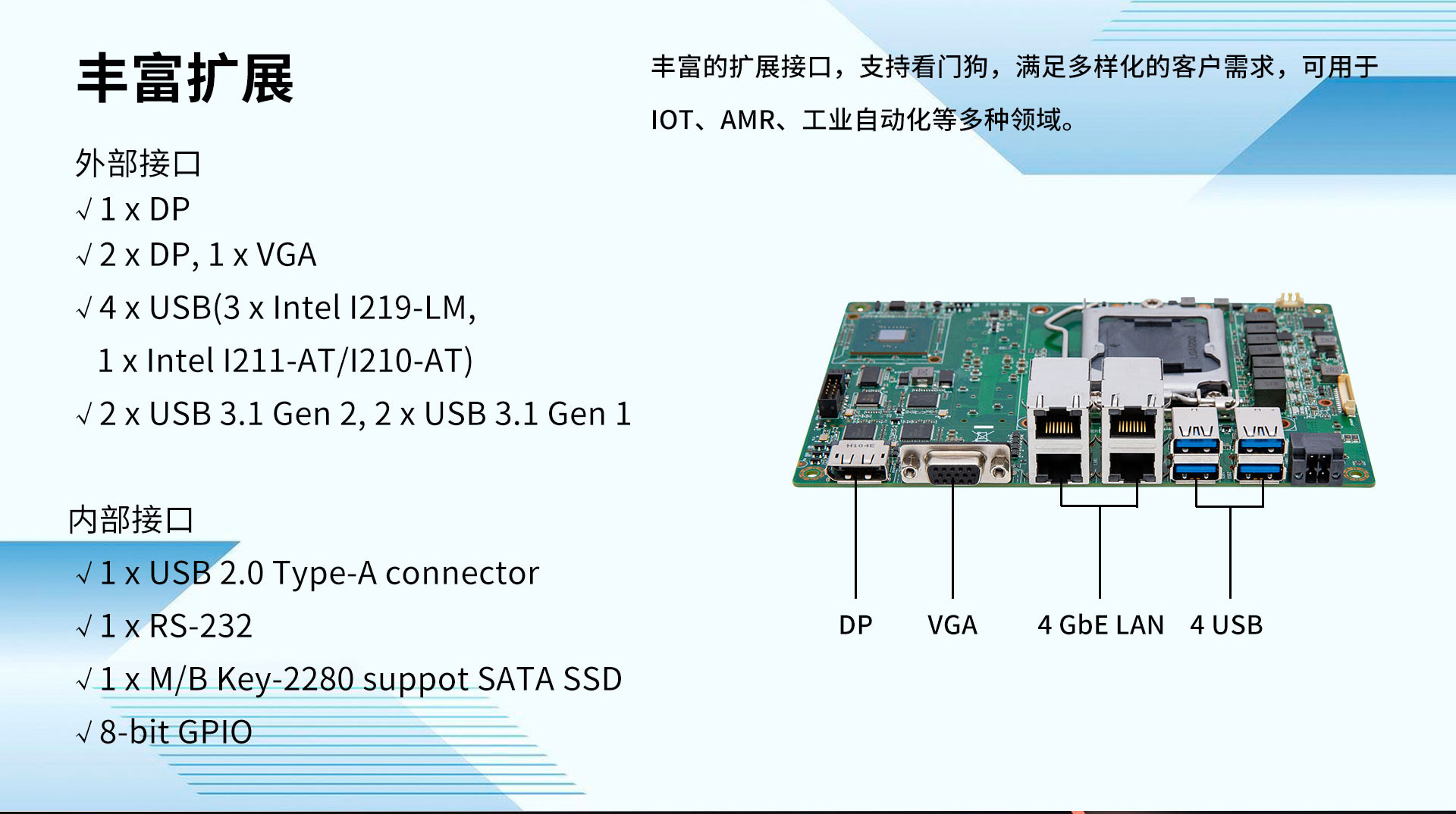

Rear I/O | DP | 1 (Resolution up to 4096 x 2304 @ 60 Hz) |
| VGA | 1 (Resolution up to 1920 x 1200 @ 60 Hz) | |
| LAN | 3 x Intel I211-AT or I210-AT GbE(iBMC supported), 1 x Intel I219-LM GbE | |
| USB | 2 x USB 3.1 Gen 2, 2 x USB 3.1 Gen 1 | |
| Internal Connectors | USB | 1 x USB 2.0 Type-A connector |
| COM | 1 x RS232 | |
| M.2 | 1 | |
Storage | M.2 | 2 x M/B Key 2280，support SATA SSD |
Expansion | USB3.0/PCIE x2 | 1 |
PCIe x4(Gen3) | 1 | |
+12V | 1 | |
DP++X1 | 1 | |
OS | OS | Windows 10 /Linux |
Environment | Temperature | Operating 0 ~ 60 °C (32 ~ 140 °F) Non-Operating -40 ~ 85 °C (-40 ~ 185 °F) |
Humidity | Operating 40 °C @ 95% RH Non-condensing Non-Operating 60 °C @ 95% RH Non-condensing |
