规格 Specifications
Item | Sub-Item | Description |
Processor System | CPU | Intel Apollo Lake Celeron/Pentium N3350/N4200/J3355/J3455/J4205 |
TDP | 10W MAX | |
BIOS | AMI UEFI BIOS at 64 Mbit | |
Memory | Technology | LPDDR4 |
Capacity | 8GB | |
Graphics | Controller | Intel Gen9 Graphic Engine |
Display | HDMI | 1 (Resolution up to 3840 x 2160 @ 30 Hz) |
LCD1 | 1 x eDP/LVDS (Resolution up to 1920 x 1200 @ 60 Hz) | |
VGA | 1 (Resolution up to 1920 x 1200 @ 60 Hz) | |
External I/O | USB 3.0 | 3 |
USB 2.0 | 1 | |
| HDMI | 1 | |
| LED | Power status,HDD R/W,USER1,USER2 | |
| SIM | 1 x Nano SIM | |
| Ethernet | 2 x GbE Intel i225-V | |
Internal Connectors | USB 2.0 | 2 |
VGA | 1 | |
SATA 3.0 | 1 | |
Serial Port | 1 x RS-232/422/485,1 x RS-232 | |
GPIO | 8 | |
| Audio | 1 X HDA | |
| SMBus | 1 | |
| LPC | 1 | |
| CPU FAN | 1 x 4-Wire Smart Fan,12V@2A | |
| Front Panel Control | Power LED,HD LED,Reset,Power Switch | |
| User LED | 4 | |
| UPS | 1(Optional) | |
| Expansion | M.2 E-Key | 1 x M.2 E-Key 2242 support Wifi |
| M.2 B-Key | 1 x M.2 B-Key 3052 support 4G USB3.0 | |
| M.2 M-Key | 1 x M.2 B/M-Key 2280 SATA 3.0 | |
| Board Feature | Watchdog Timer | 65536 lever, 0~65535 sec |
| TPM | TPM 2.0 | |
OS | OS | Windows 10 /Linux |
Power Requirement | Supply Voltage | DC 24V±5% |
| Power Management | AT/ATX | |
| Max. Consumption | 35W | |
| Test Environment | Intel J4205 4G | |
Environment | Temperature | Operating 0 ~ 60 °C (32 ~ 140 °F) Non-Operating -40 ~ 85 °C (-40 ~ 185 °F) |
Humidity | Operating 40 °C @ 95% RH Non-condensing Non-Operating 60 °C @ 95% RH Non-condensing | |
Physical Characteristics | Dimensions (L x H) | 146 x 102 mm |
尺寸图 Demensions

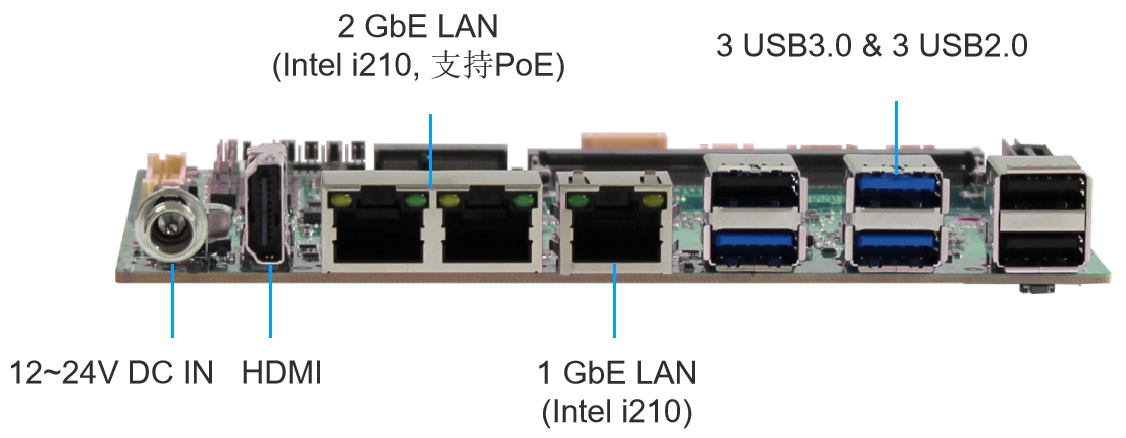

接口图 Demensions
