Processor System

CPU

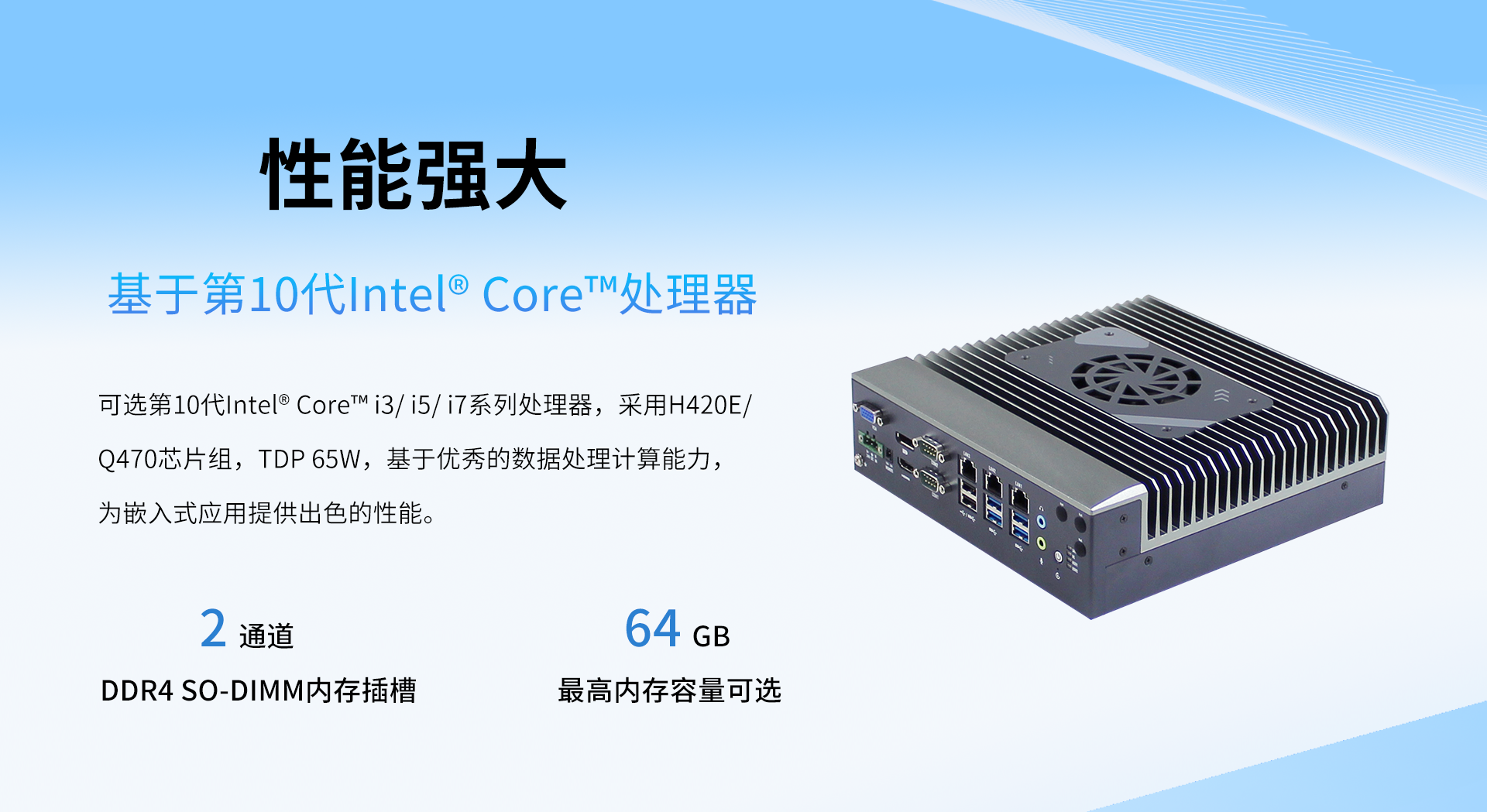

10th generation Intel^® Core™ i3/ i5/ i7 Processors

Chipset

H420E/ Q470

Socket

LGA1200

TDP

Max 65W

BIOS

AMI 128Mbit SPI Flash

Memory

Technology

2 x 260 PIN DDR4 SO-DIMM

Capacity

Max 64GB

Graphics

Controller

Intel UHD Graphics supports DirectX12, OpenGL 4.5 and OpenCL 2.1

Graphic Features

3D Acceleration: Direct3D 2015, OpenGL4.5, OpenCL2.1

 HW Decode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8/10-bit),VP8, MPEG2,MJPEG,VC-1

 HW Encode: HEVC/H.265 (8/10-bit), AVC/H.264, VP9(8-bit),VP8, MPEG2,MJPEG

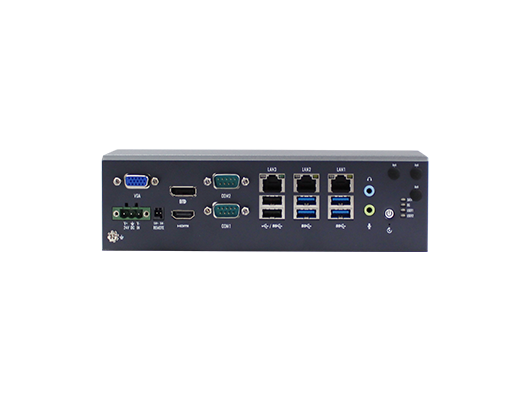

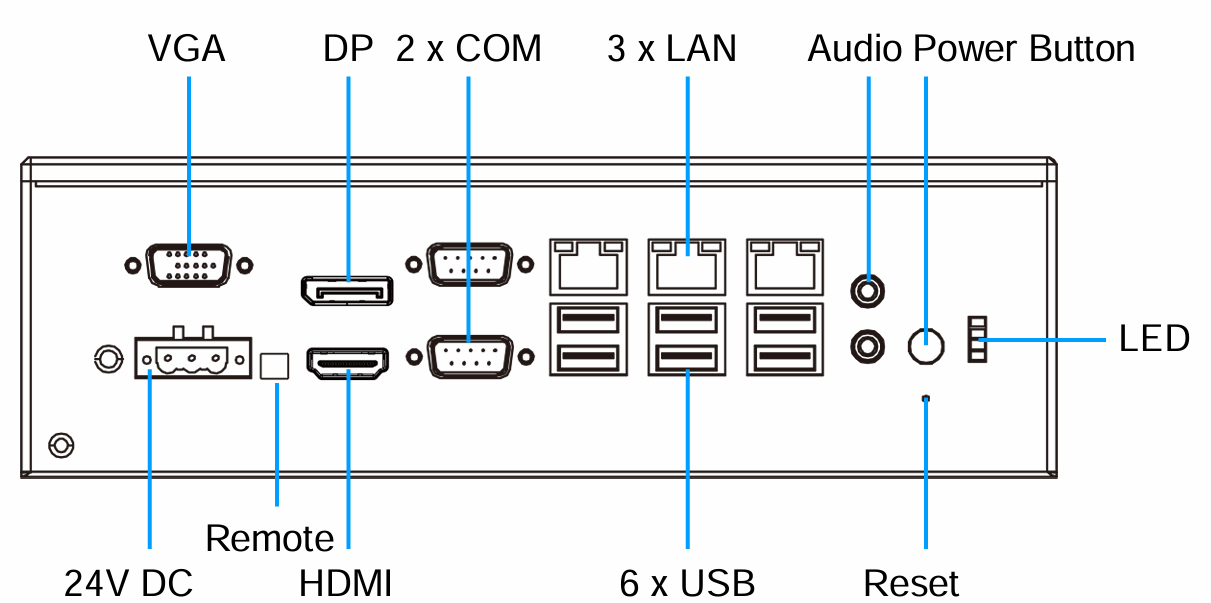

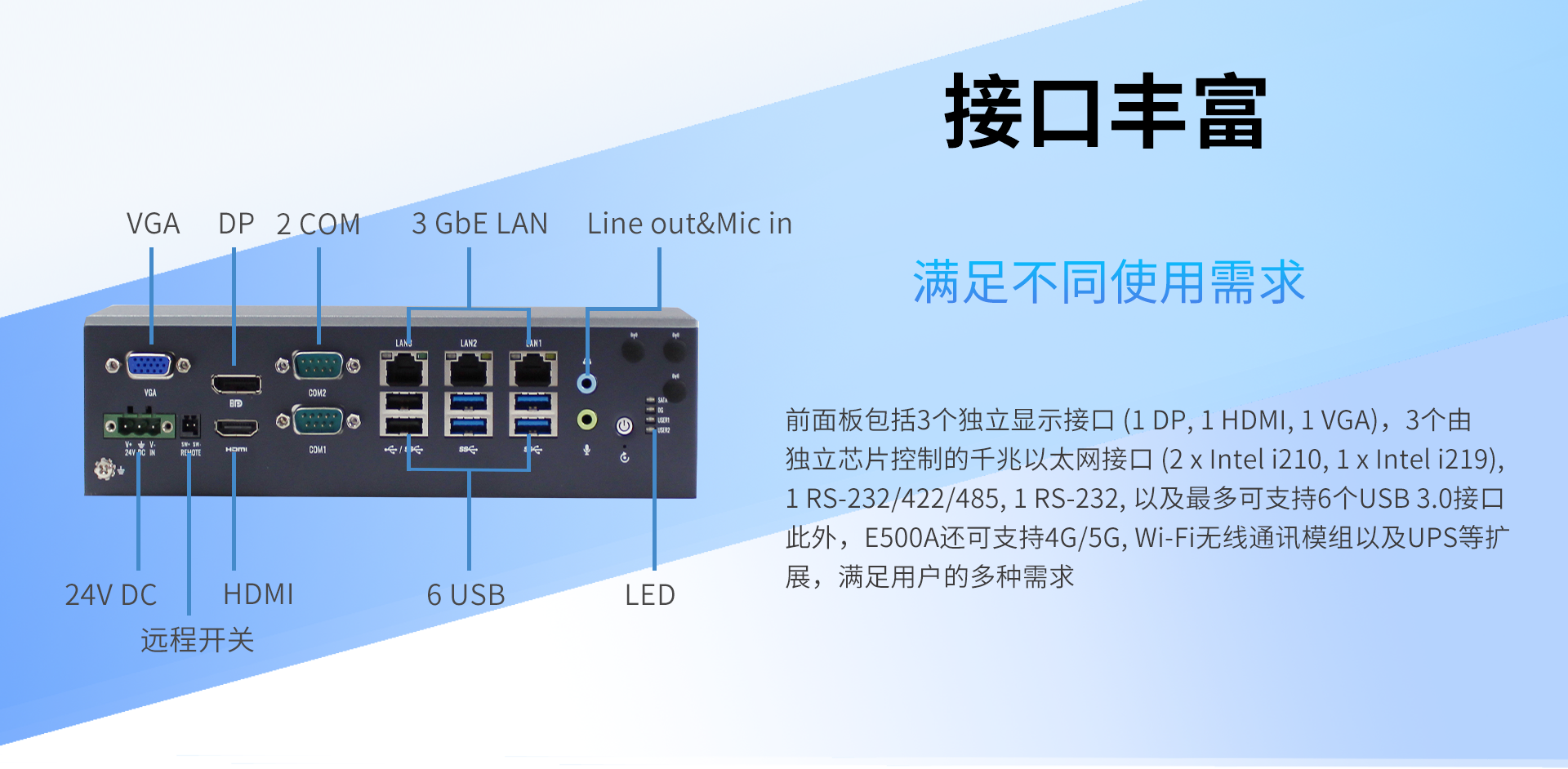

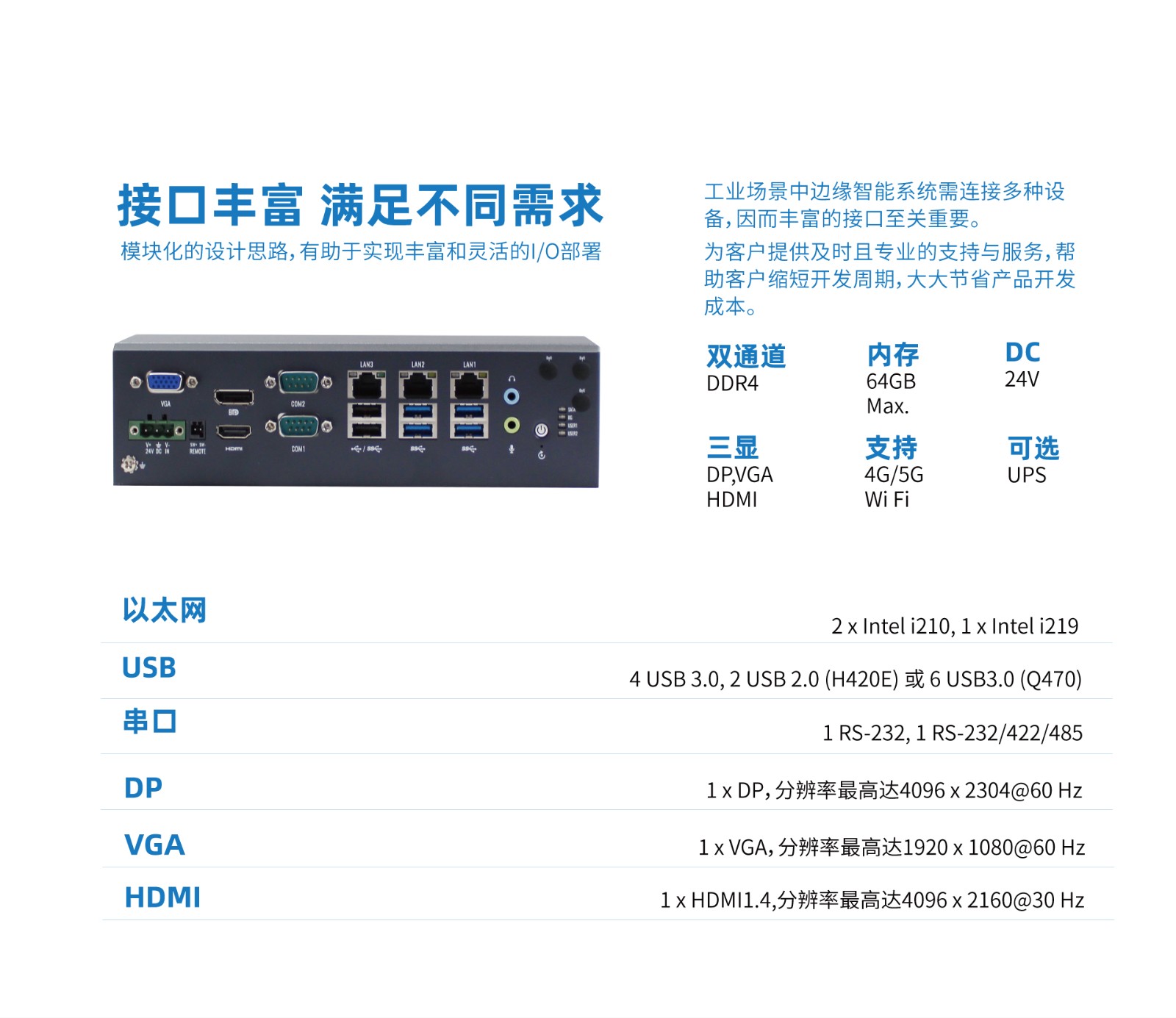

External I/O

DP

1 x DP1.4 resolution up to 4096x2304@60Hz

HDMI

1 x HDMI1.4 resolution up to 4096 x 2160@30 Hz

VGA

1 x VGA resolution up to 1920 x 1200@60Hz

LAN

2 x Intel i210 GbE LAN, 1 x Intel i219 GbE LAN

Serial Ports

1 x RS-232/422/485,  1 x RS-232

USB 3.0

4 (H420E)/ 6 (Q470)

LED & Switch

LED

HDD, Memory, User-defined 1, User-defined 2

Power Button

1 x Power Button

Internal Connectors

M.2 E-Key

1 x M.2 2230 support Wi-Fi (Q470: CNVI&PCIe protocol, H420E: PCIe protocol)

M.2 B-Key

1 x M.2 3052 support 4G/5G

Power Supply

Power Management

AT/ATX

Others

Watchdog

65536 level, 0~65535 sec

TPM

TPM2.0 (Optional)

Physical Characteristics

Construction

Aluminium Alloy

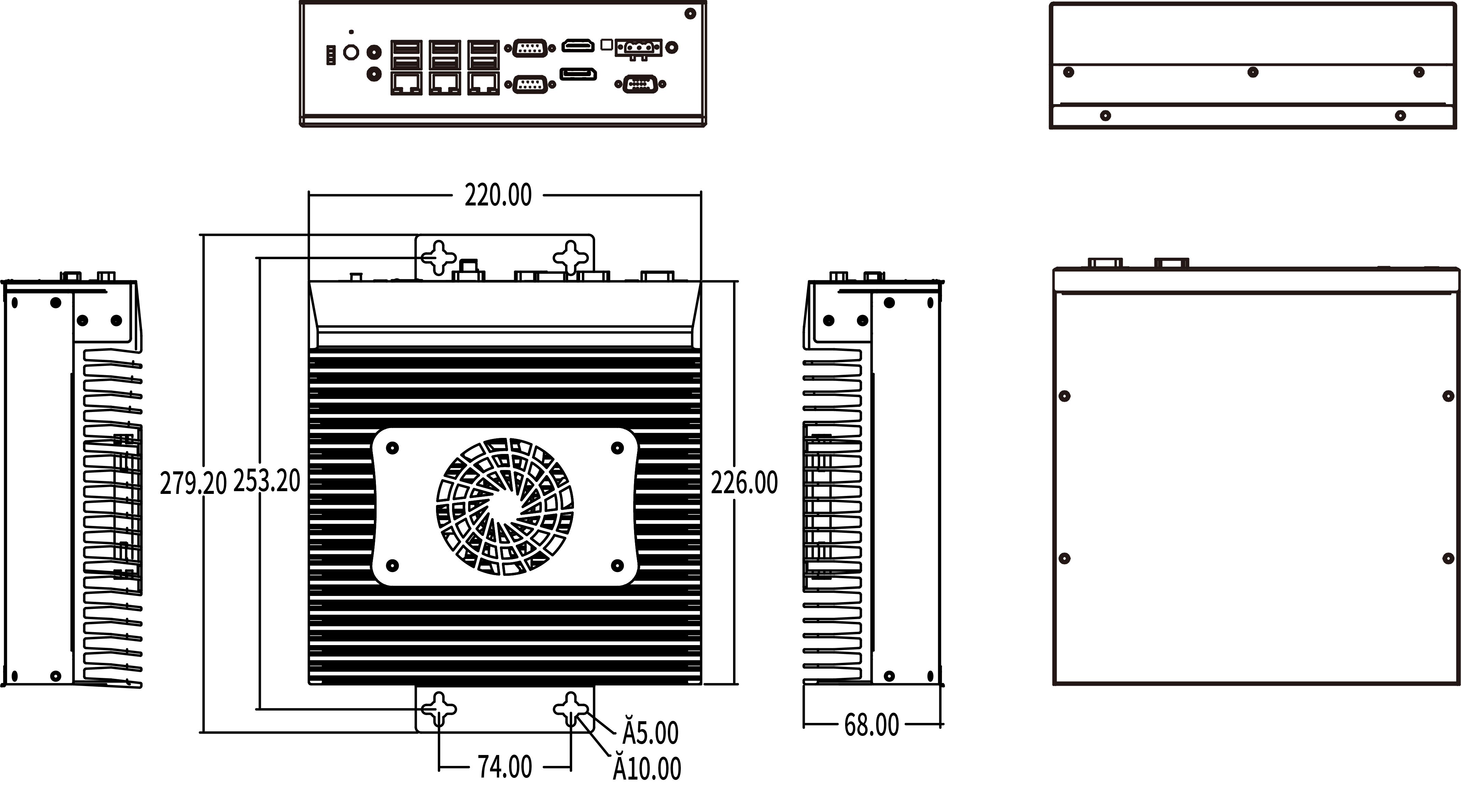

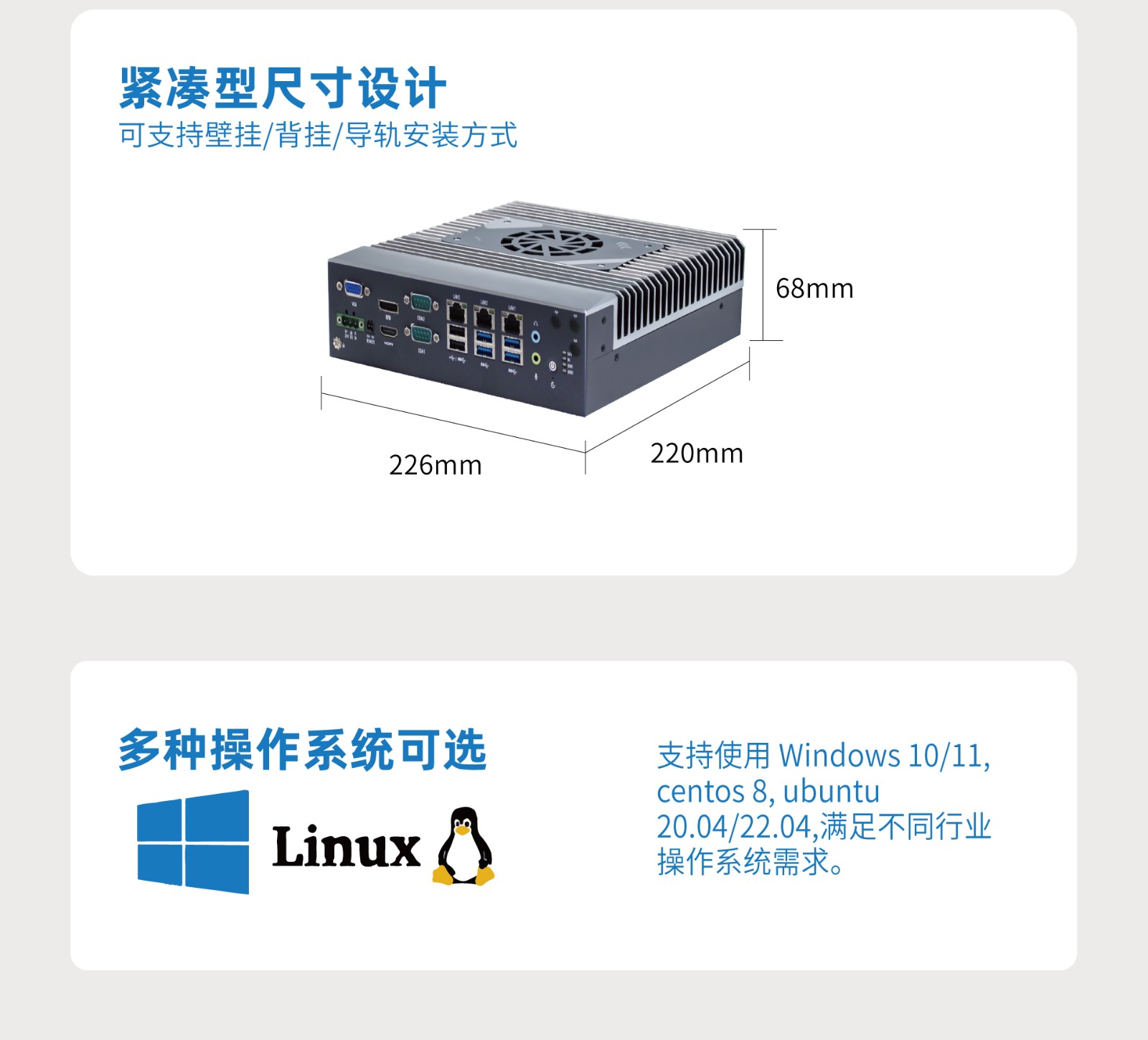

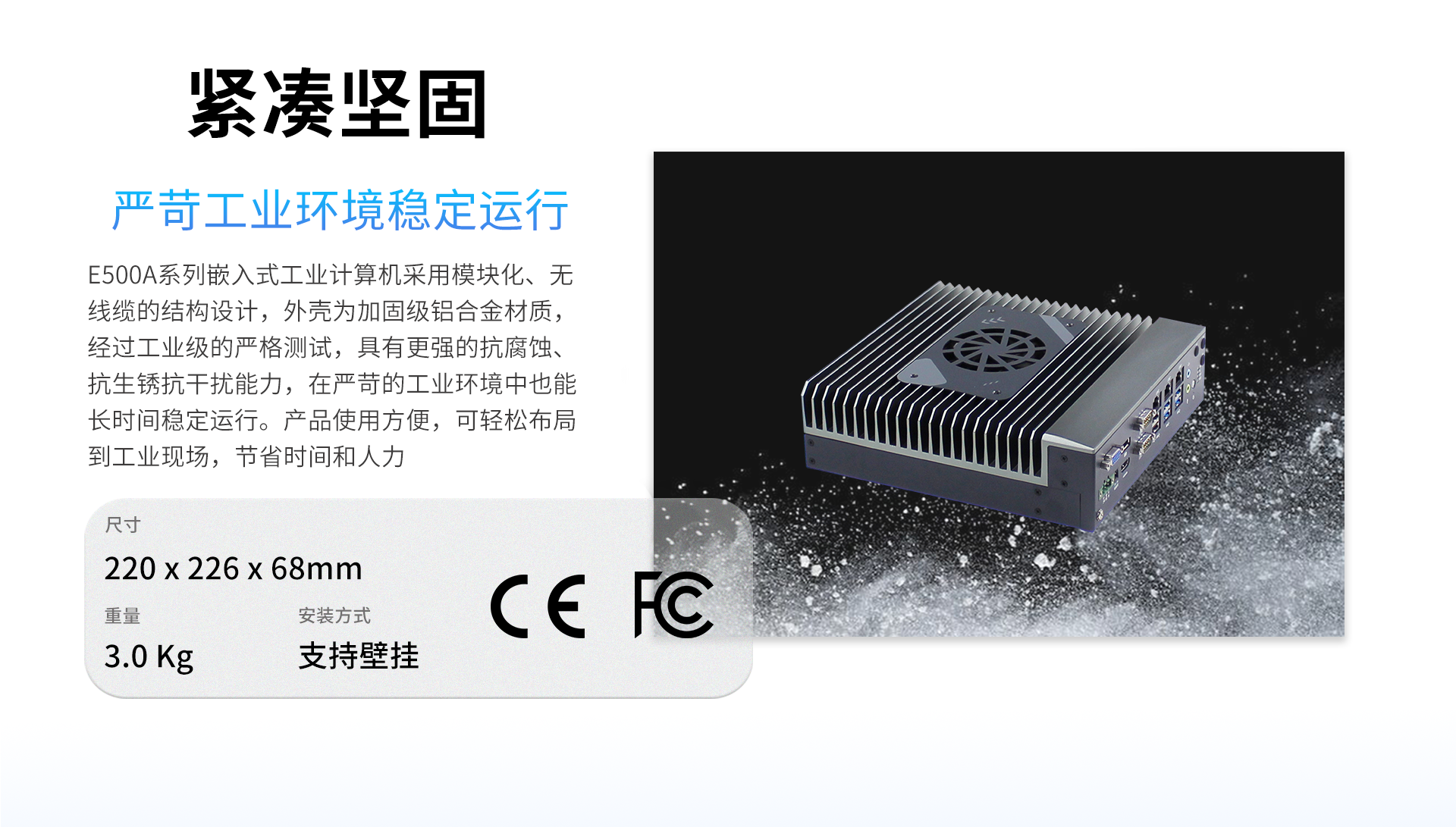

Dimension

220 x 226 x 68mm (L x W x H)

Weight

3.0 kg

Installation

Wall Mounting

Environment

Operating Temperature

0°C~50°C (32~122℉)

-40°C~85°C （-40~185℉）

Operating Humidity

95%@40°C(Non-Condensing)

Storage Humidity

95% @60°C ( Non-Condensing )
