规格 Specifications
Specs | Item | E512 |
Processor System | CPU | Intel® 6th/7th/8th/9th Gen Processors with LGA1151 |
Chipset | H110 | |
| BIOS | AMI 8MB UEFI | |
Memory | Sockets | 2xDDR4 SO-DIMM |
Capacity | 4GB (Max. 32GB) | |
Display | DP | 2 x DP (4K2K resolution), Max. 4096 x 2304@60Hz |
VGA | 1 x VGA, Max. 1920 x 1080@60Hz | |
Dual Display | Yes, DP + DP or DP + VGA | |
Audio | I/O | 1xMic-in, 1xLine-out |
Ethernet | LAN | 5 x Intel® i211-AT / i210-AT GbE |
LAN | 1 x Intel® i219-LM GbE | |
I/O Interface | USB | 4xUSB2.0, 4xUSB3.0 |
COM | 2 x RS232, 2 x RS485 | |
Remote | 4-pin remote power on/off switch and LED on the front | |
Expansion | Mini-PCIe | 1 x full-size mini-PCIe, Support WLAN/WWAN module |
USIM | 1xUSIM, Support 3G/4G LTE | |
Storage | M.2 | 1 x M.2 |
SATA3.0 | 1 x SATA3.0, For 2.5" SATA storage device | |
Watchdog | Output/Interval | Interrupt, System Reset/255 levels timer interval, from 1 to 255 sec |
| Power Supply | DC input | 24V DC IN |
OS | MicrosoftWindows | Windows 7(Intel® 6th Gen CPU only), Windows 10 64Bit |
Linux | Yes | |
Physical Characteristics | Construction | Aluminium Alloy |
Mounting | Wall Mounting | |
Dimensions | 220x226x75mm(LxWxH) | |
Weight | 3.3Kg | |
Environment | Operating Temperature | 0°C~50°C, Airflow 0.7m / s |
| Storage Temperature | -40°C~80°C | |
Relative Humidity | 95%@40°C(Non-Condensing) | |
Vibration During Operation | With SSD:3Grms, IEC 60068-2-64, random vibration, 5~500 Hz, 1hr/axis | |
Shock During Operation | With SSD:30 G, IEC 60068-2-27, half sine, 11m duration | |
ESD | Contact +/-4 KV, Air +/-8 KV | |
EMC | CE/FCCClassB |

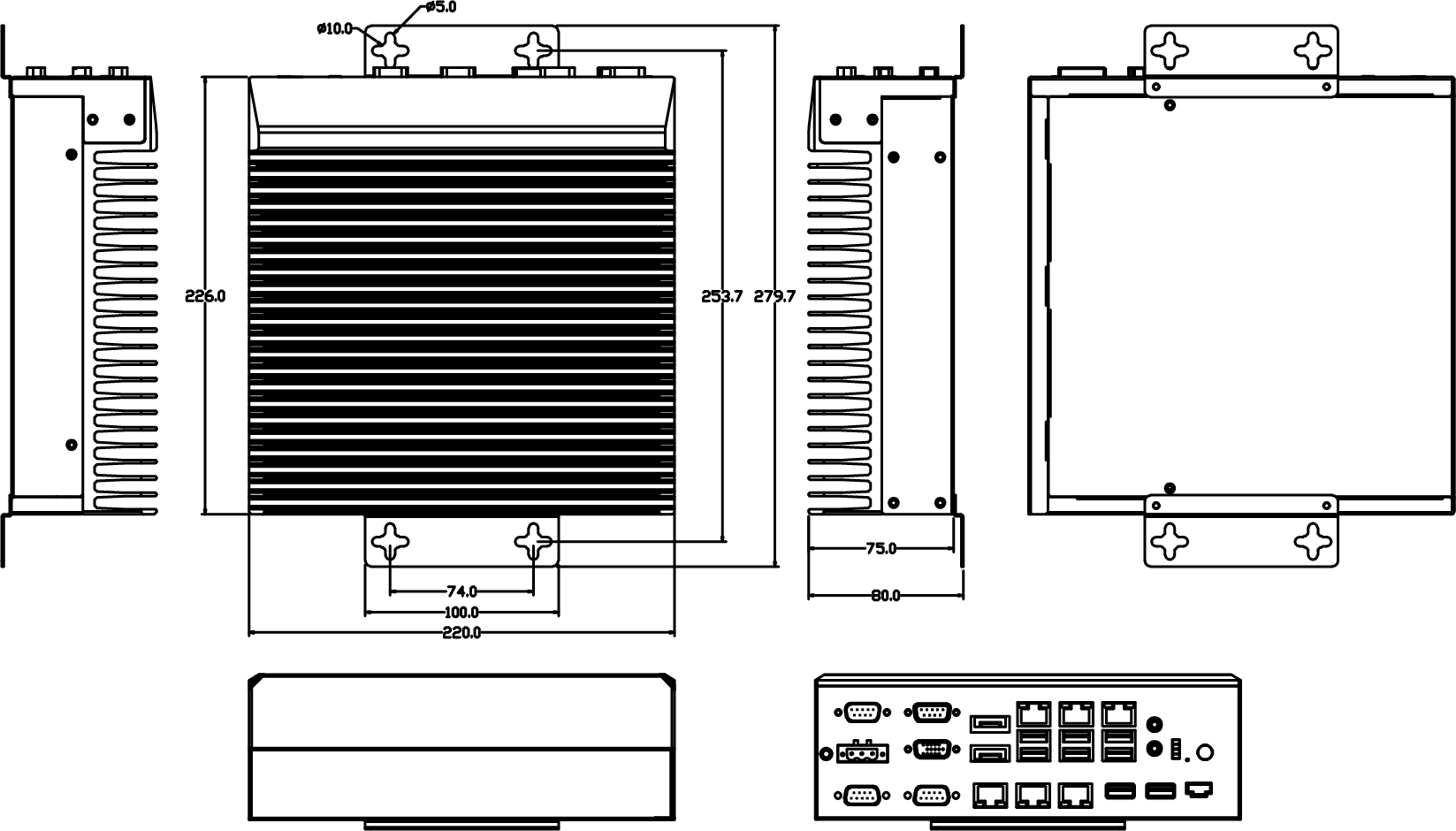

尺寸图 Demension

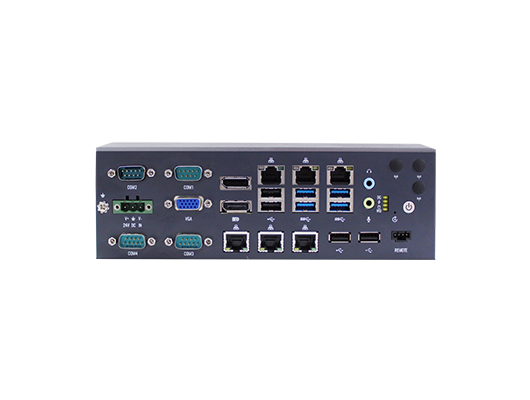

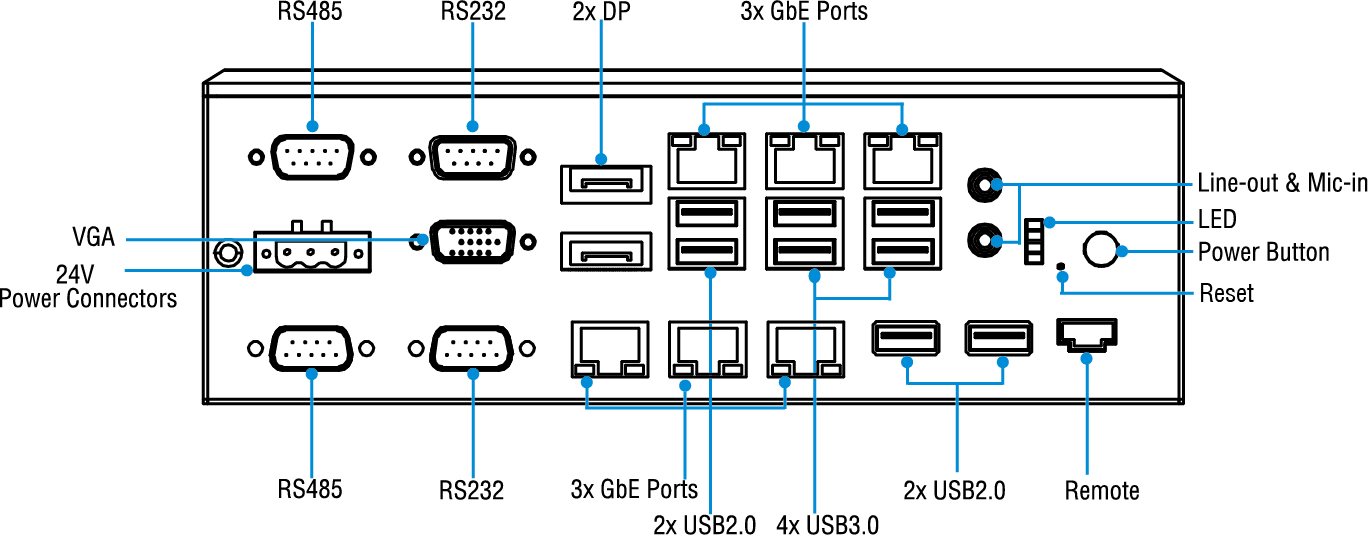

接口图 Interfaces
